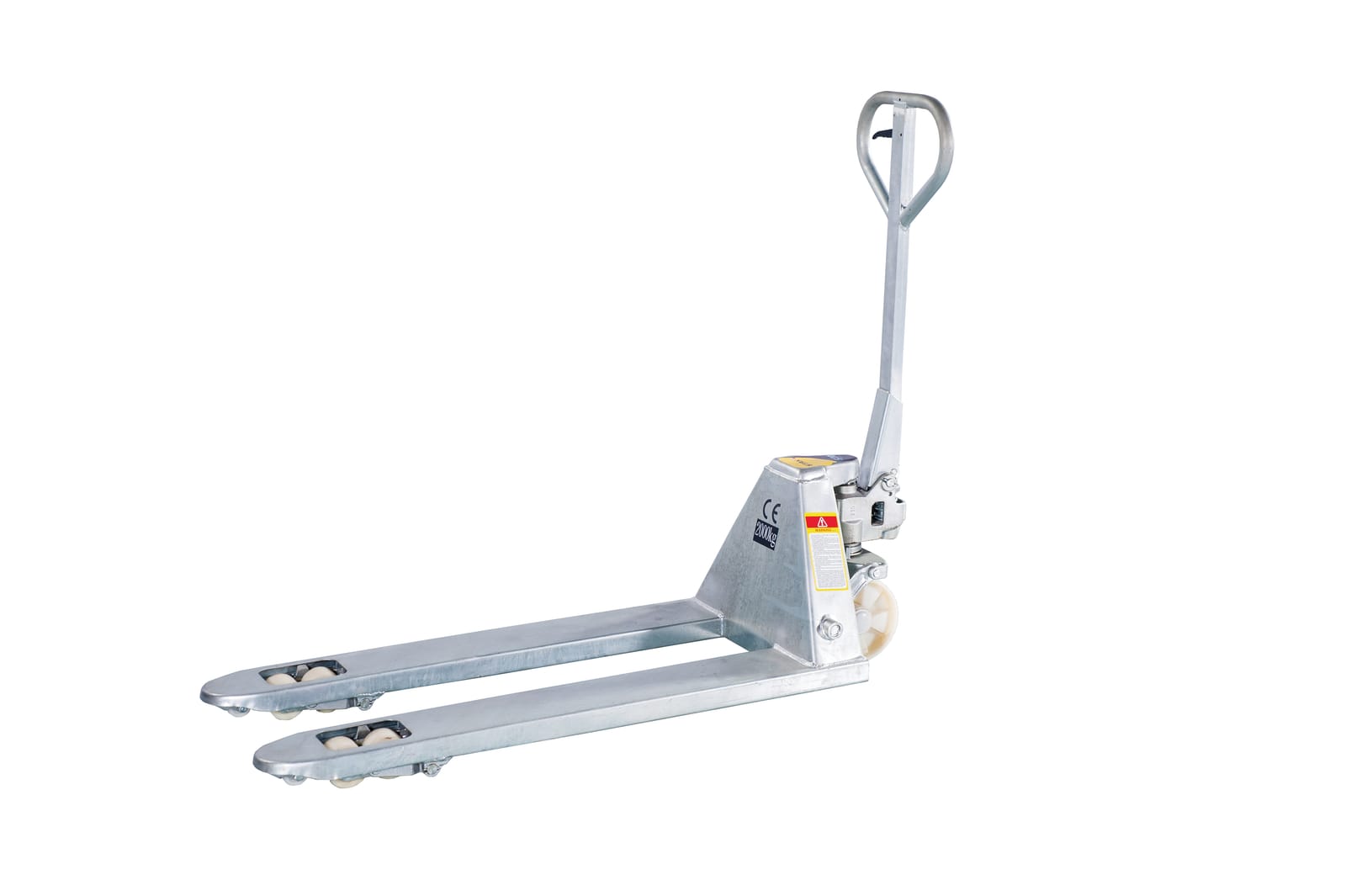

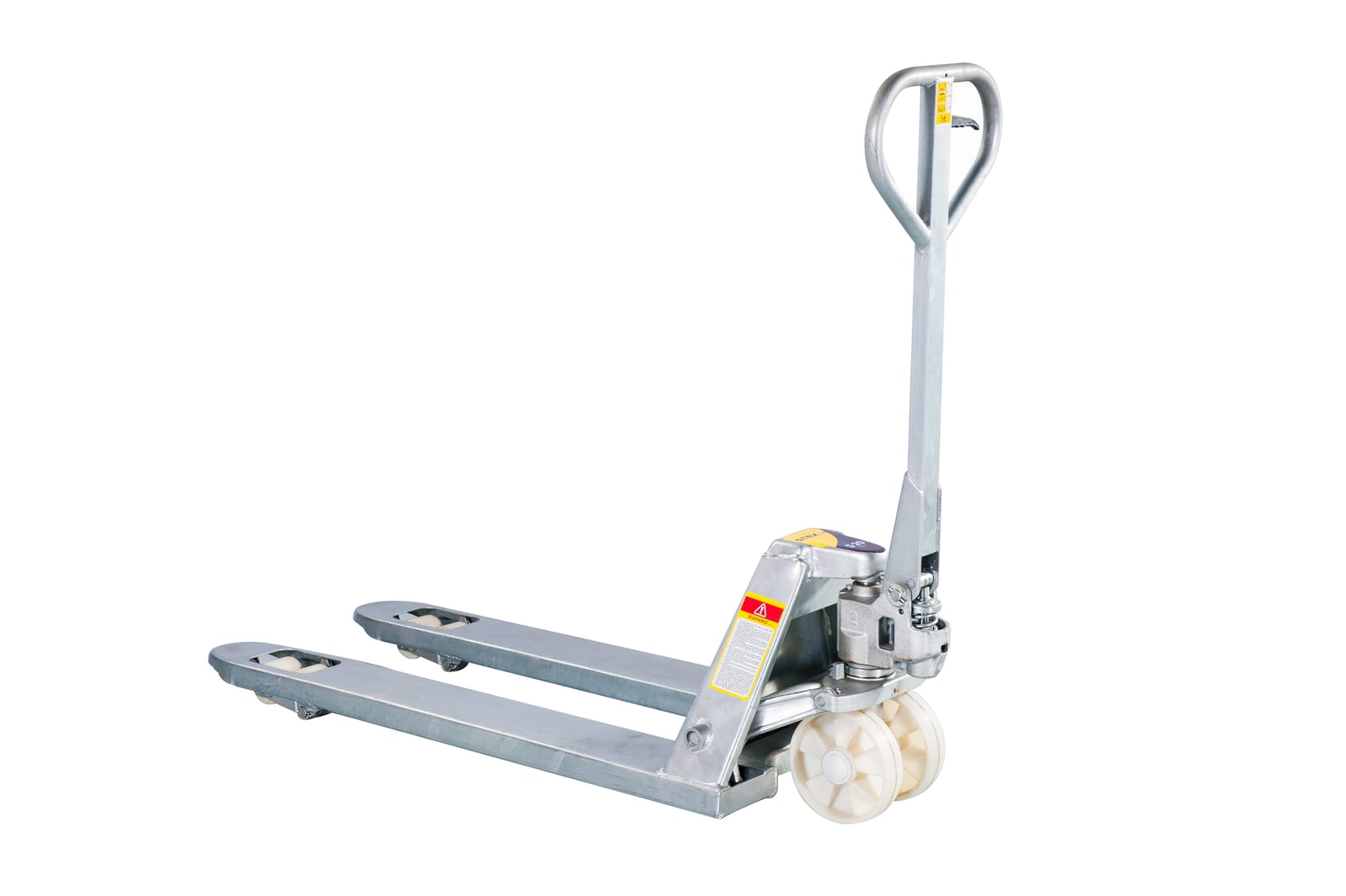

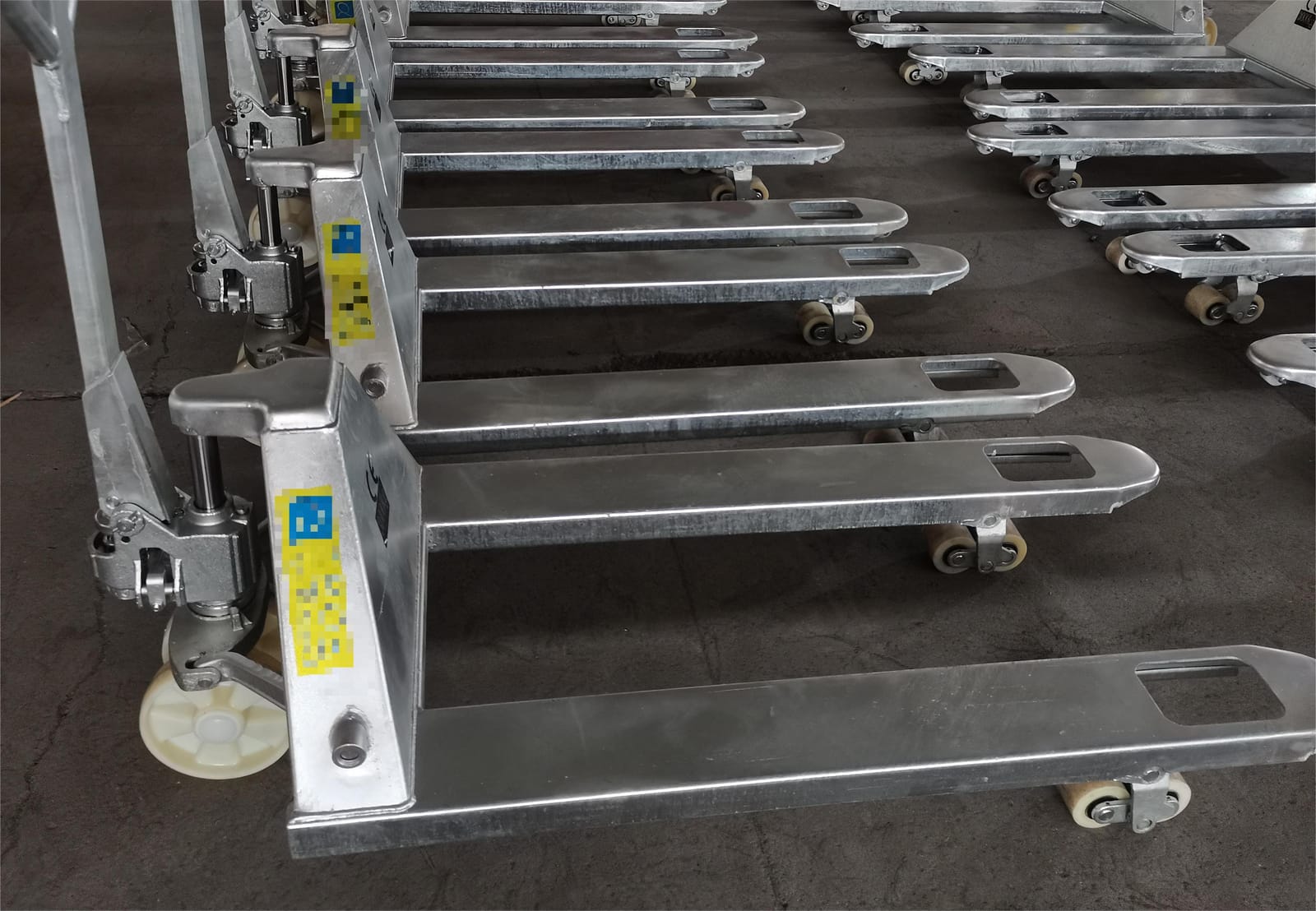

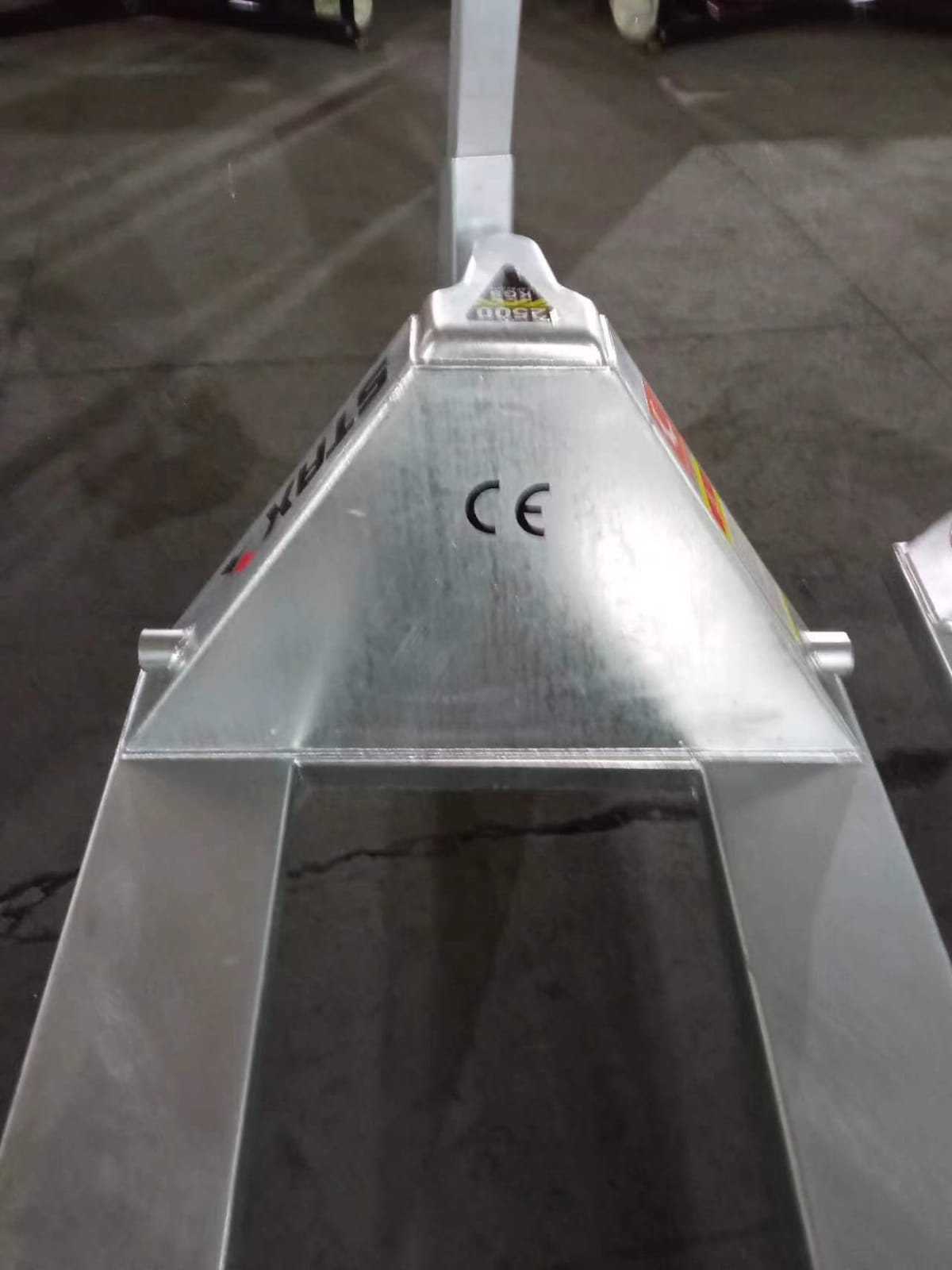

Galvanised hand pallet truck
Models: WH-25G WH-30G
Hot-dip galvanised pallet truck for wet and corrosive environments.
- All exposed parts galvanized, including the hydraulic pump, fork frame and handle
- For cold and wet environments: resists cold, condensation and washing
- Pressure relief valve and overload valve protect the pump
- One-piece pump design simplifies repairs and gives long service life
- Nylon wheels as standard
Price on request
- Free quote, no obligation
- Service & spare parts in-house
- Shipping across Greece
Downloads
User manuals· 1
Certificates & test reports· 2
Specifications
Technical specifications
| Model | WH-25G | WH-30G |
|---|---|---|
| Rated capacity | 2500 kg | 3000 kg |
| Max. lift height | 200 / 190 mm | 200 / 190 mm |
| Lowered fork height | 85 / 75 mm | 85 / 75 mm |
| Fork length | 1100 / 1150 / 1220 mm | 1100 / 1150 / 1220 mm |
| Overall fork width | 540 / 685 mm | 540 / 685 mm |
| Travel | Manual | Manual |
| Lifting | Manual (hydraulic pump) | Manual (hydraulic pump) |
| Machine weight | 72 kg | 82 kg |
| Wheels | Nylon | Nylon |
| Lifting stroke | 115 mm | 115 mm |
| Fork steel thickness | 3 mm | 3.75 mm |
| Finish | Galvanized (all exposed parts) | Galvanized (all exposed parts) |
Data from the official STAXX catalogue. Specifications may be changed by the manufacturer. Download the catalogue (PDF)
