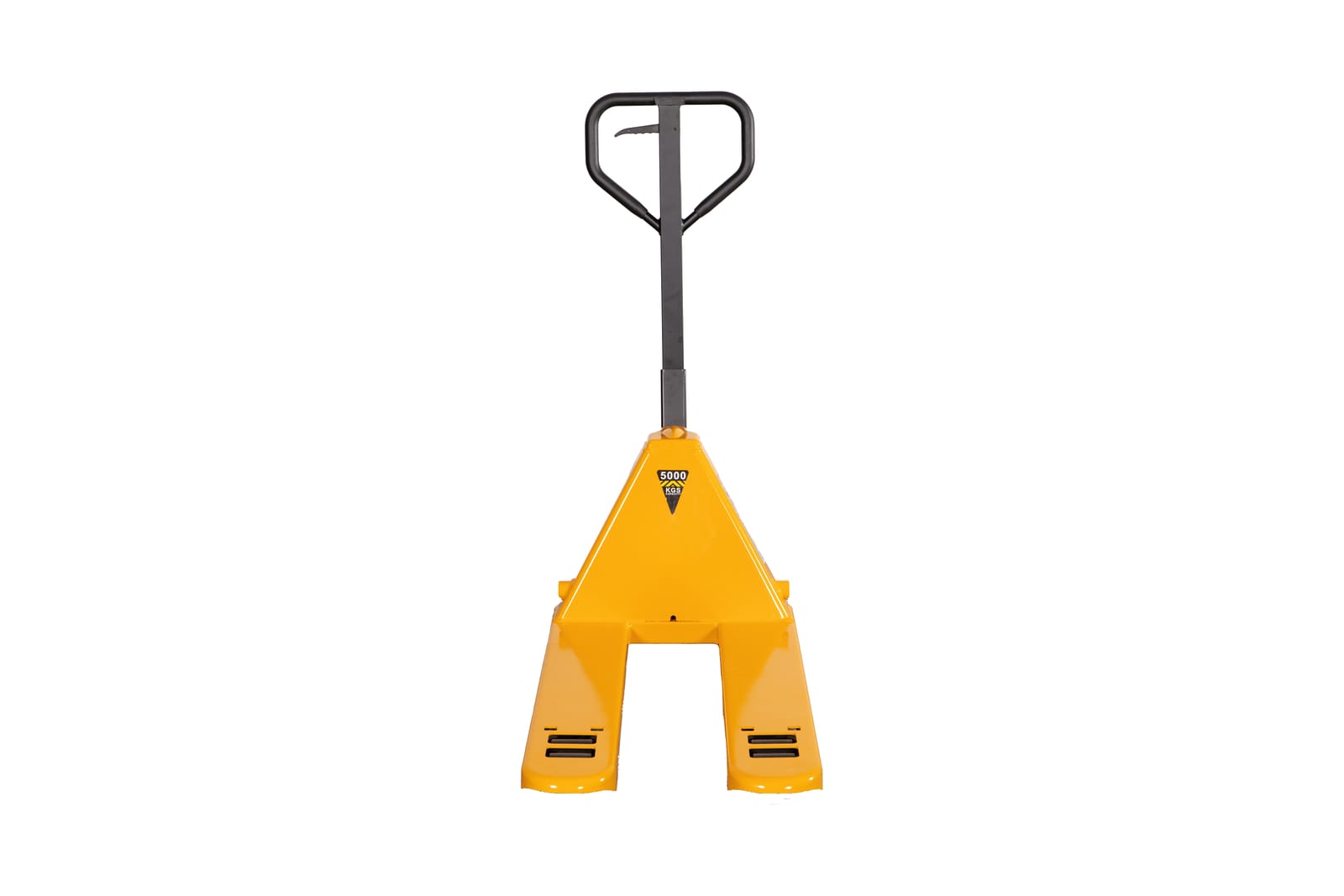

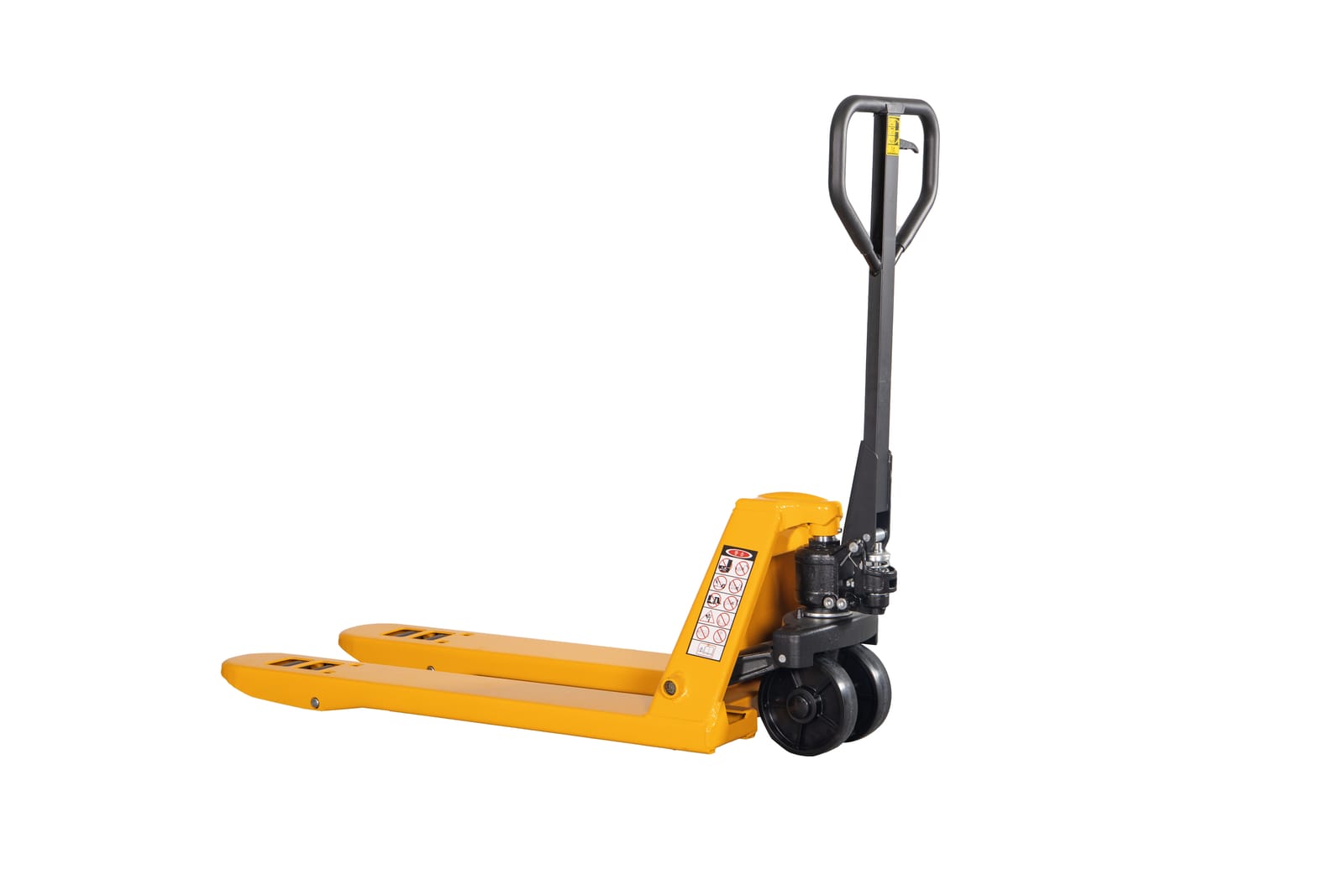

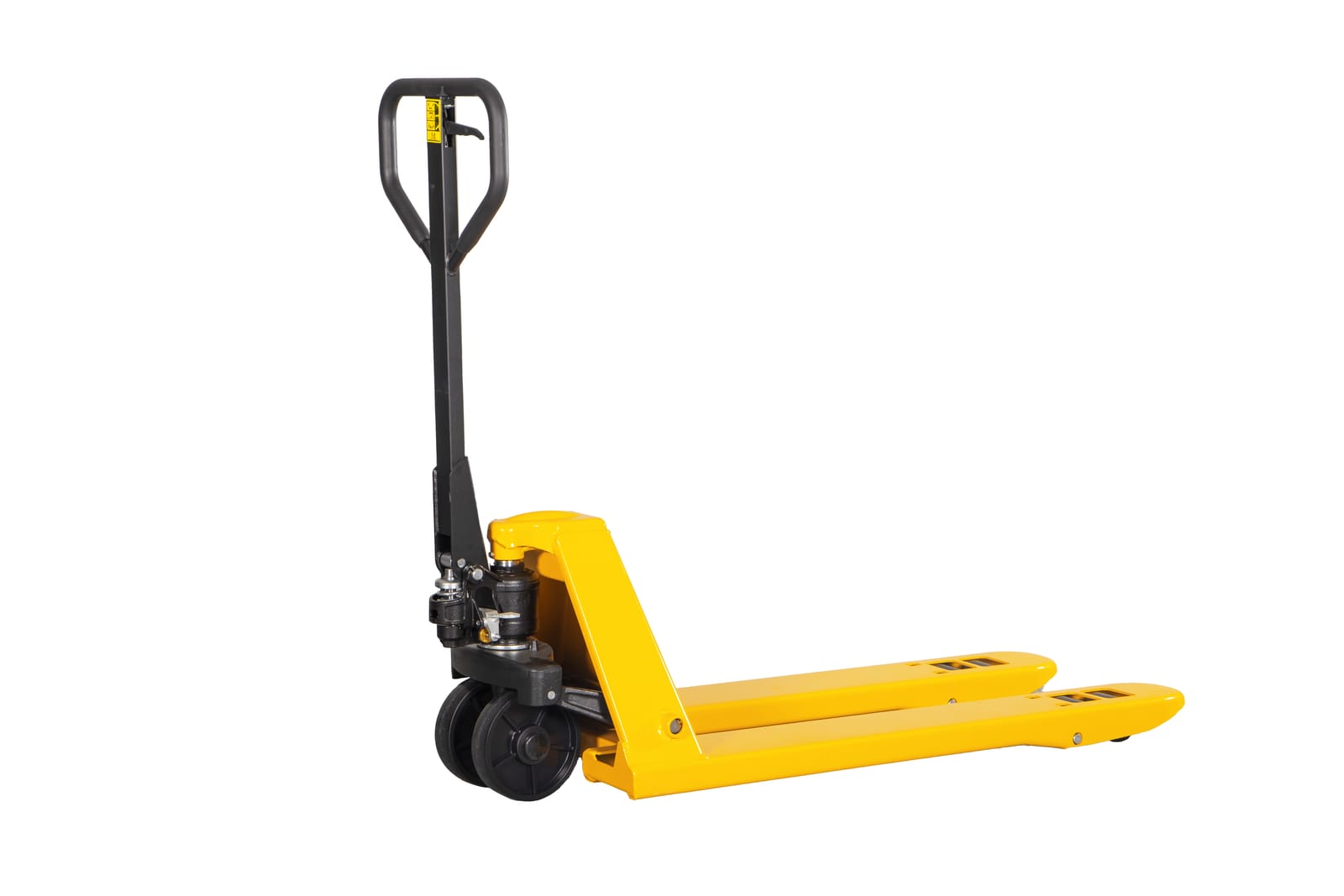

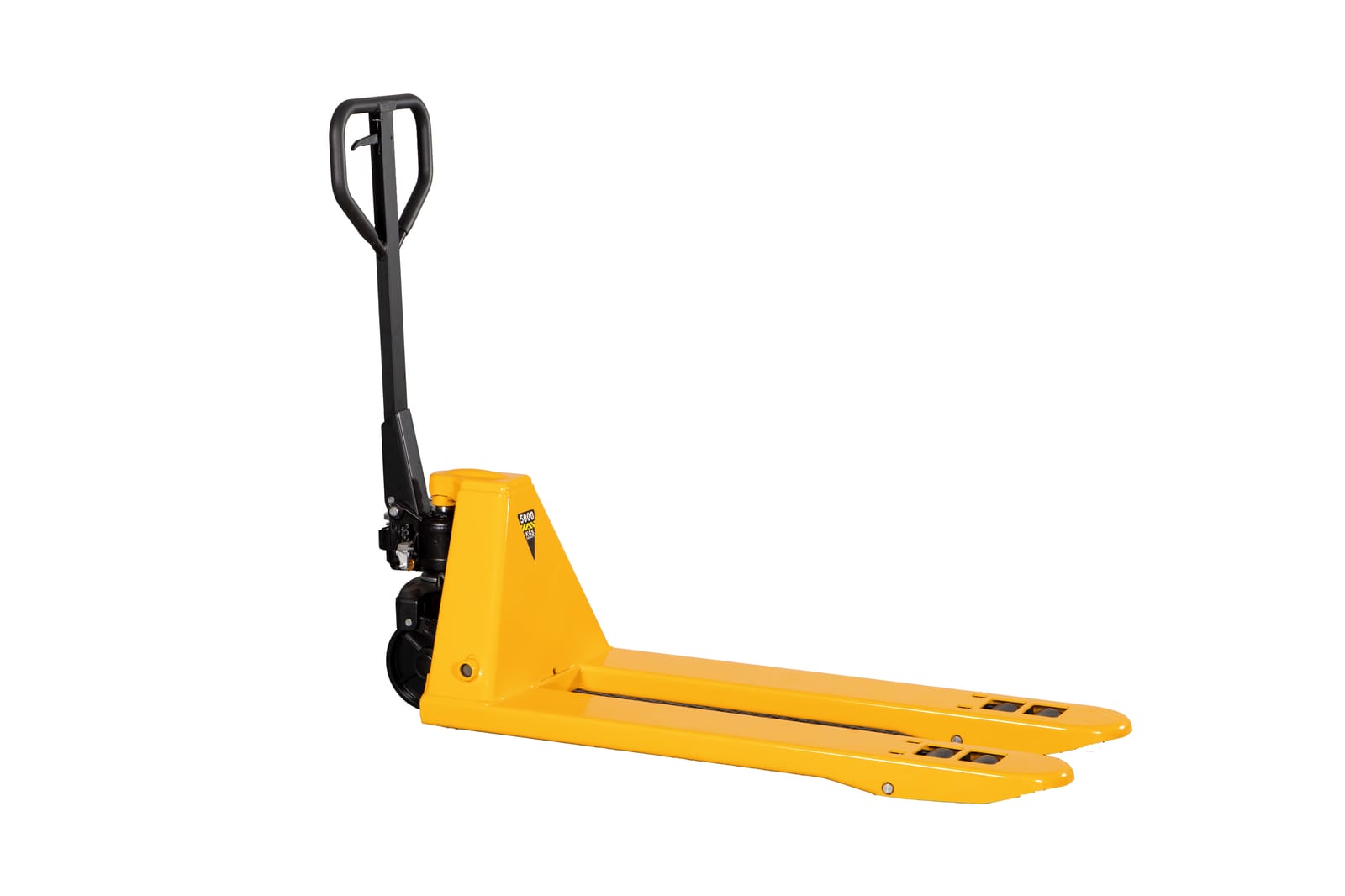

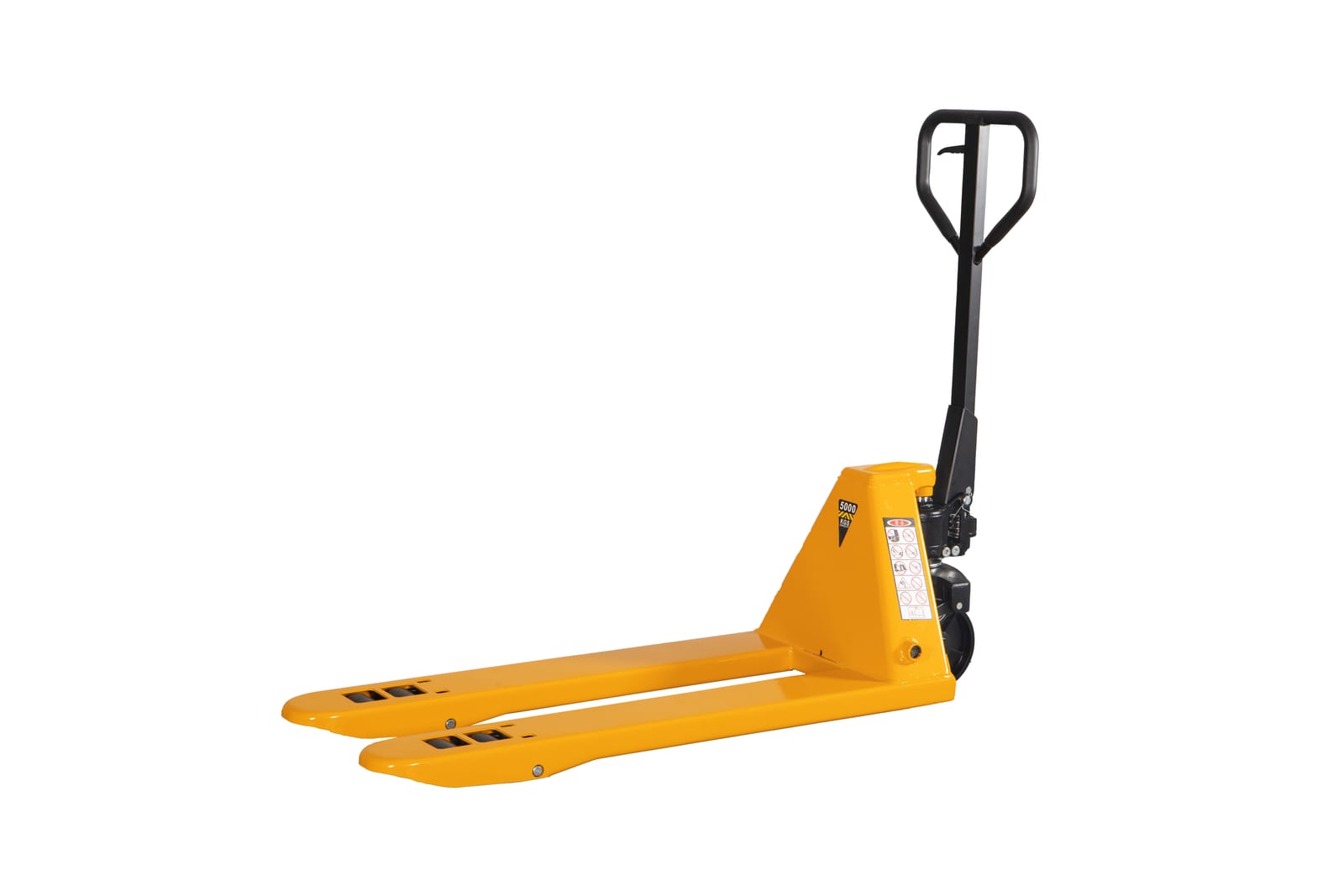

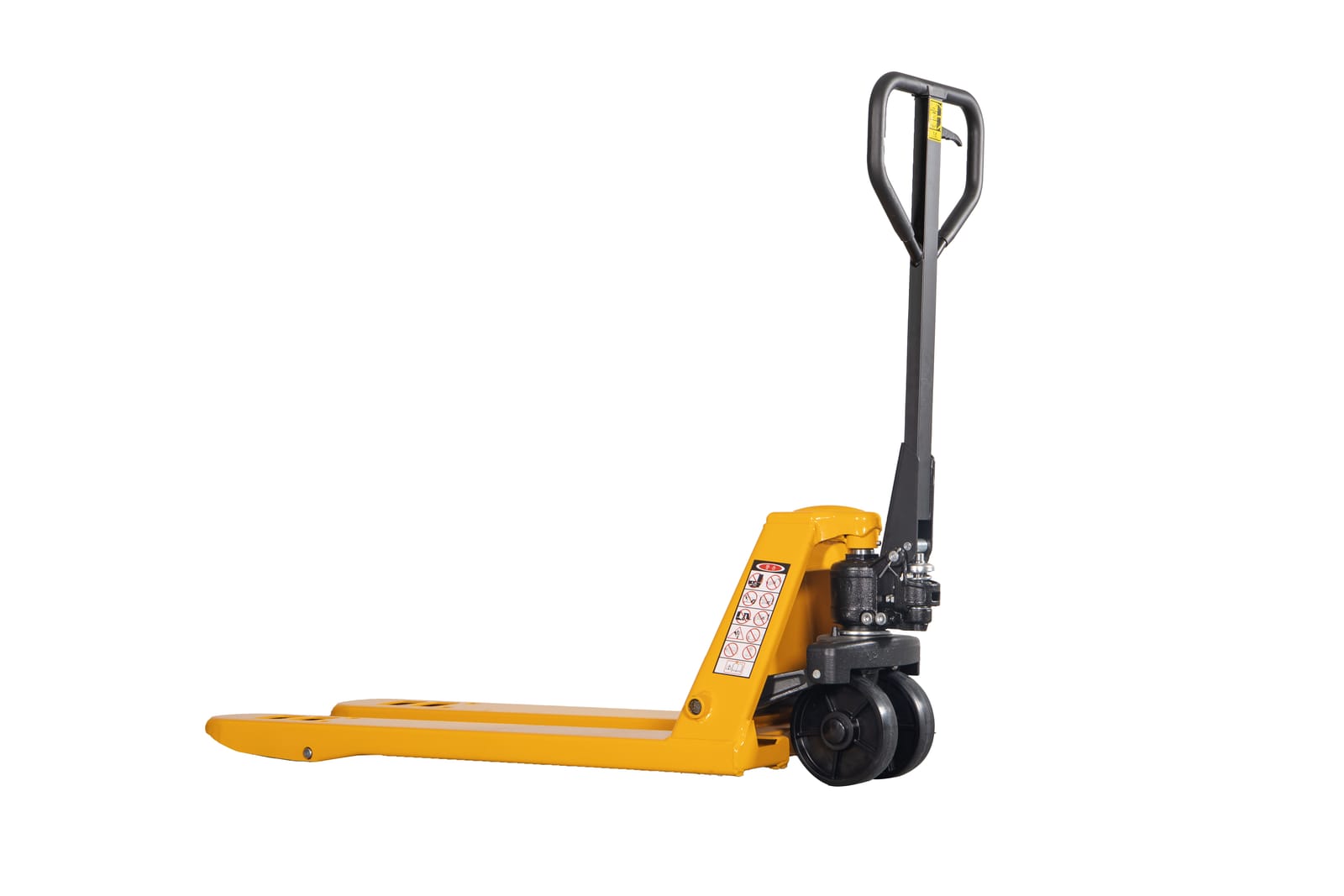

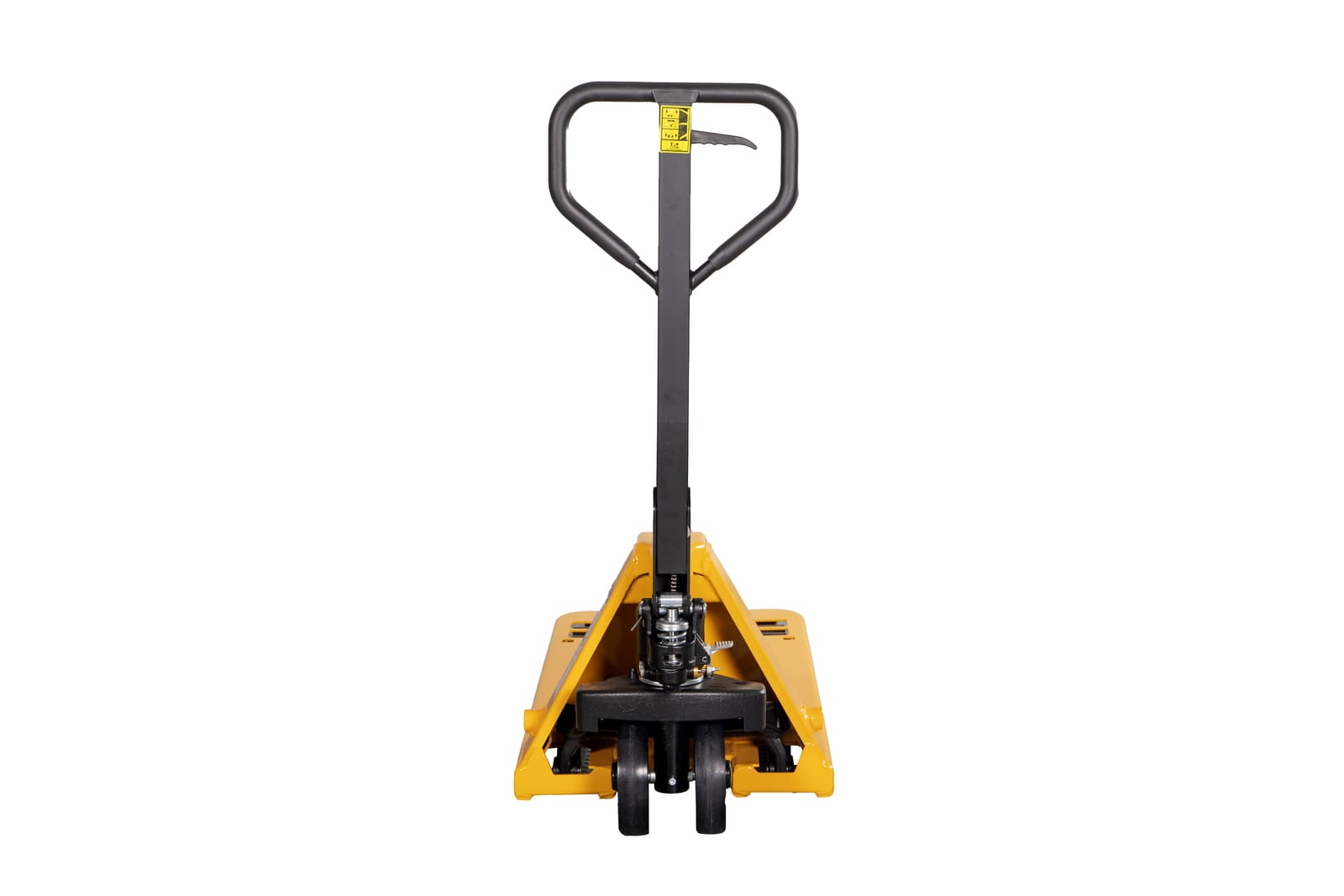

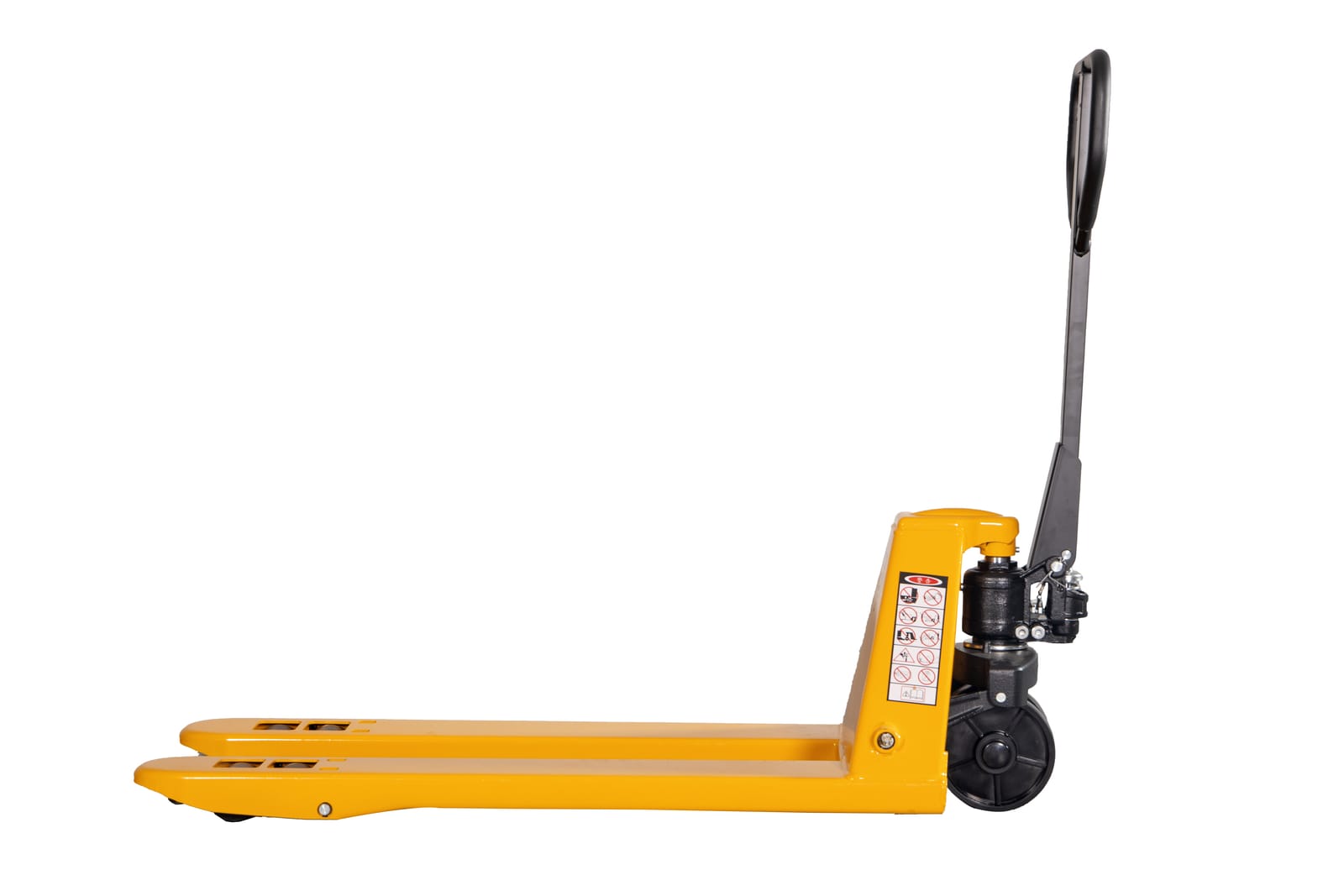

5-tonne hand pallet truck BF50
Models: BF50
Reinforced hand pallet truck for loads up to 5,000 kg.
- Heavy duty, 5 mm fork steel with integrated bent fork

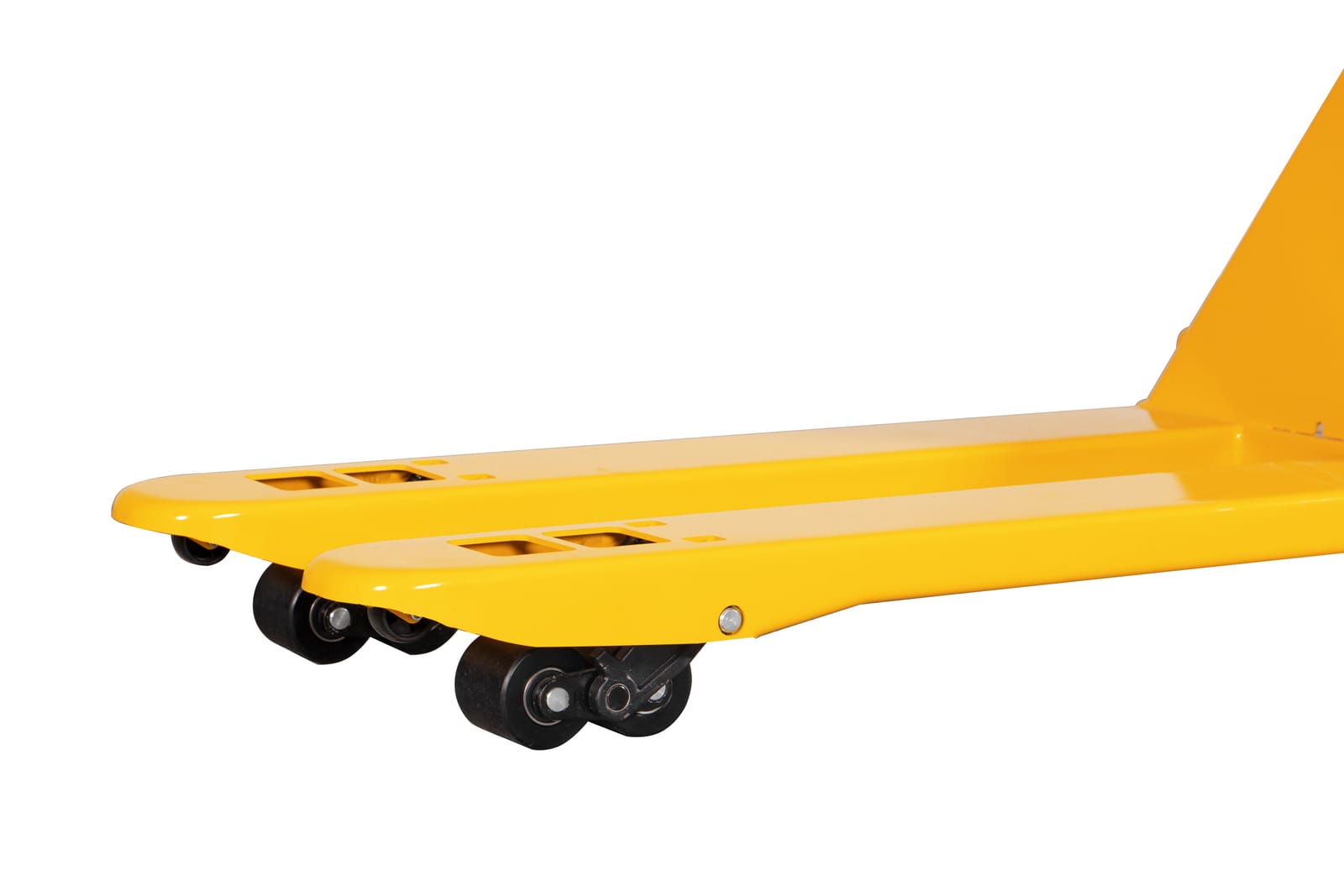

- Additional entry and exit rollers for easy entry into closed pallets
- Cast hydraulic pump with overload valve and fine control of lowering speed
- 12 copper bushings for quiet running and long service life; adjustable push rod
- Custom fork lengths available: 1500, 1800 or 2000 mm
Price on request
- Free quote, no obligation
- Service & spare parts in-house
- Shipping across Greece
Downloads
Specifications
Technical specifications
| Rated capacity | 5000 kg |
|---|---|
| Max. lift height | 200 mm |
| Lowered fork height | 85 mm |
| Fork length | 1150 / 1220 mm |
| Overall fork width | 550 / 685 mm |
| Travel | Manual |
| Lifting | Manual (hydraulic pump) |
| Machine weight | 101–110 kg |
| Wheels | Nylon / iron (optional) |
| Lifting stroke | 110 mm |
| Single fork width | 176 mm |
| Fork steel thickness | 5 mm |
Data from the official STAXX catalogue. Specifications may be changed by the manufacturer. Download the catalogue (PDF)
