Hand pallet trucks

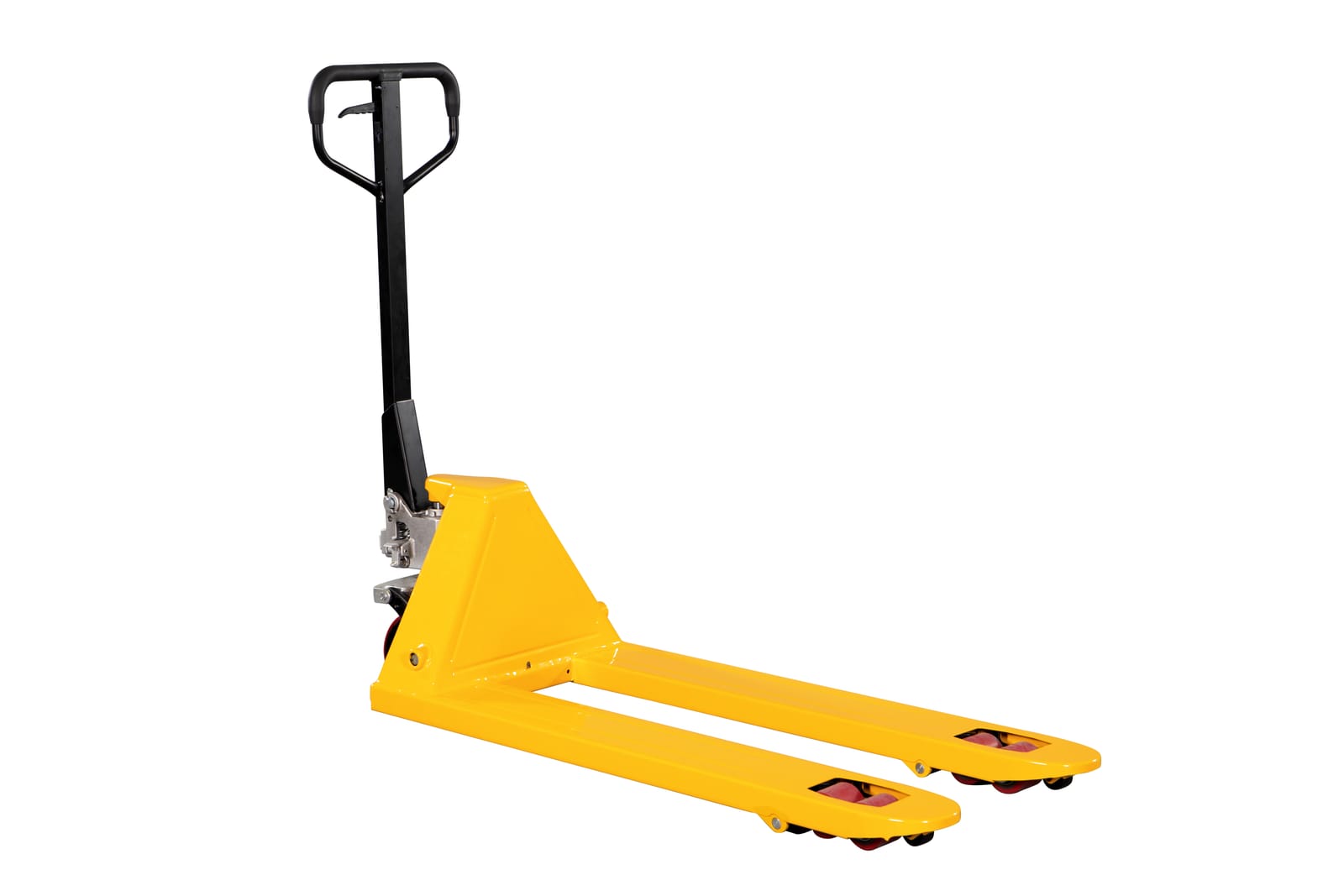

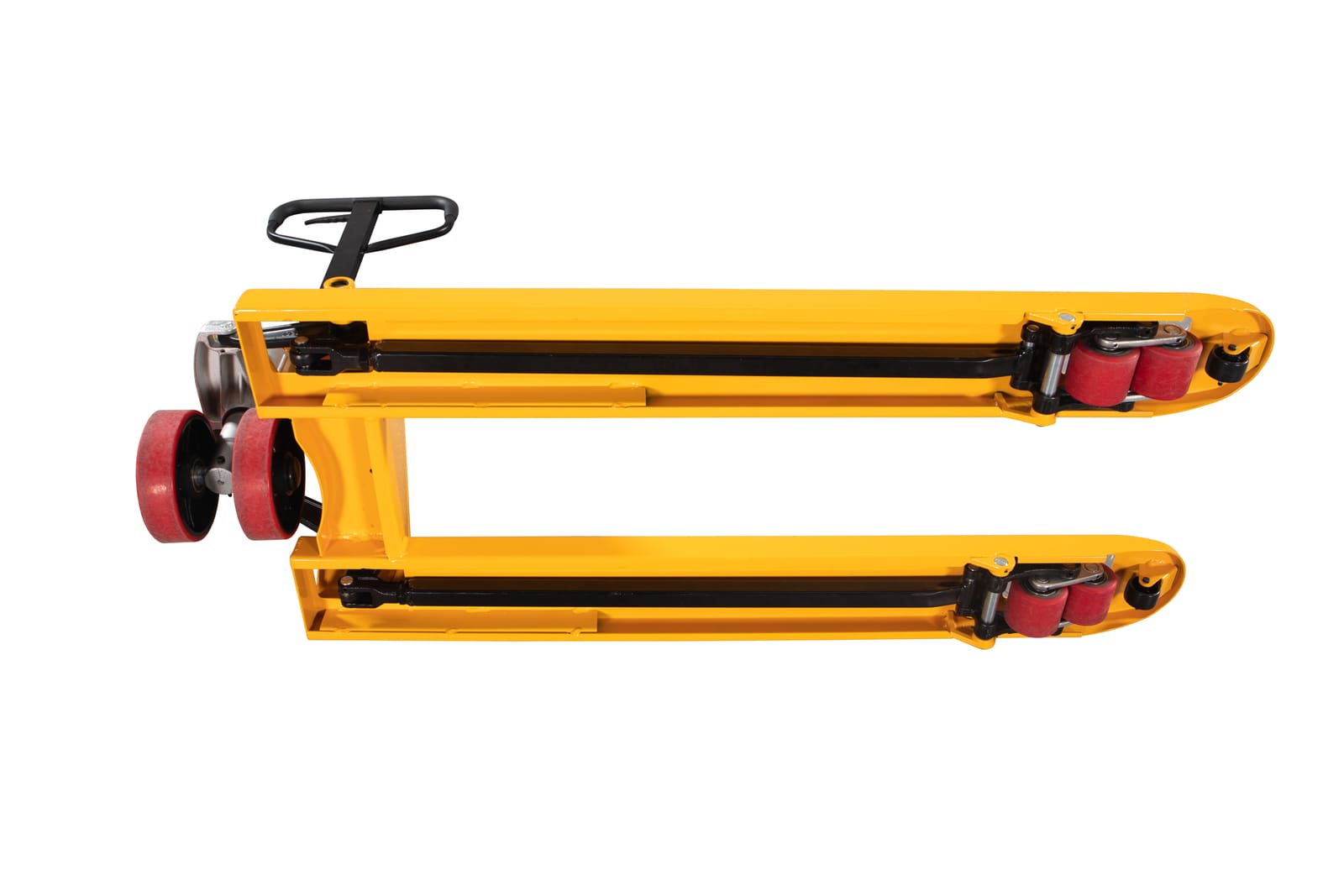

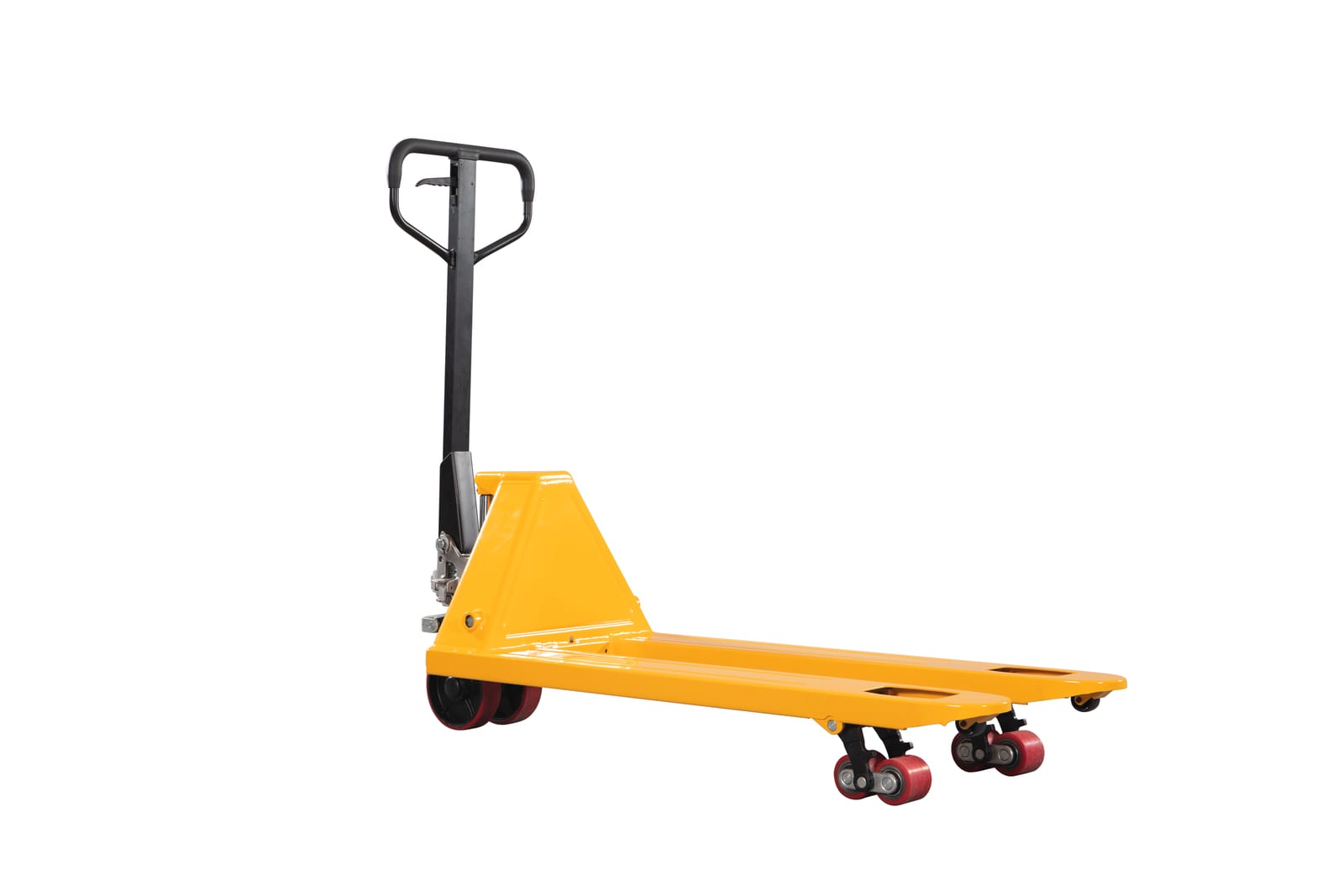

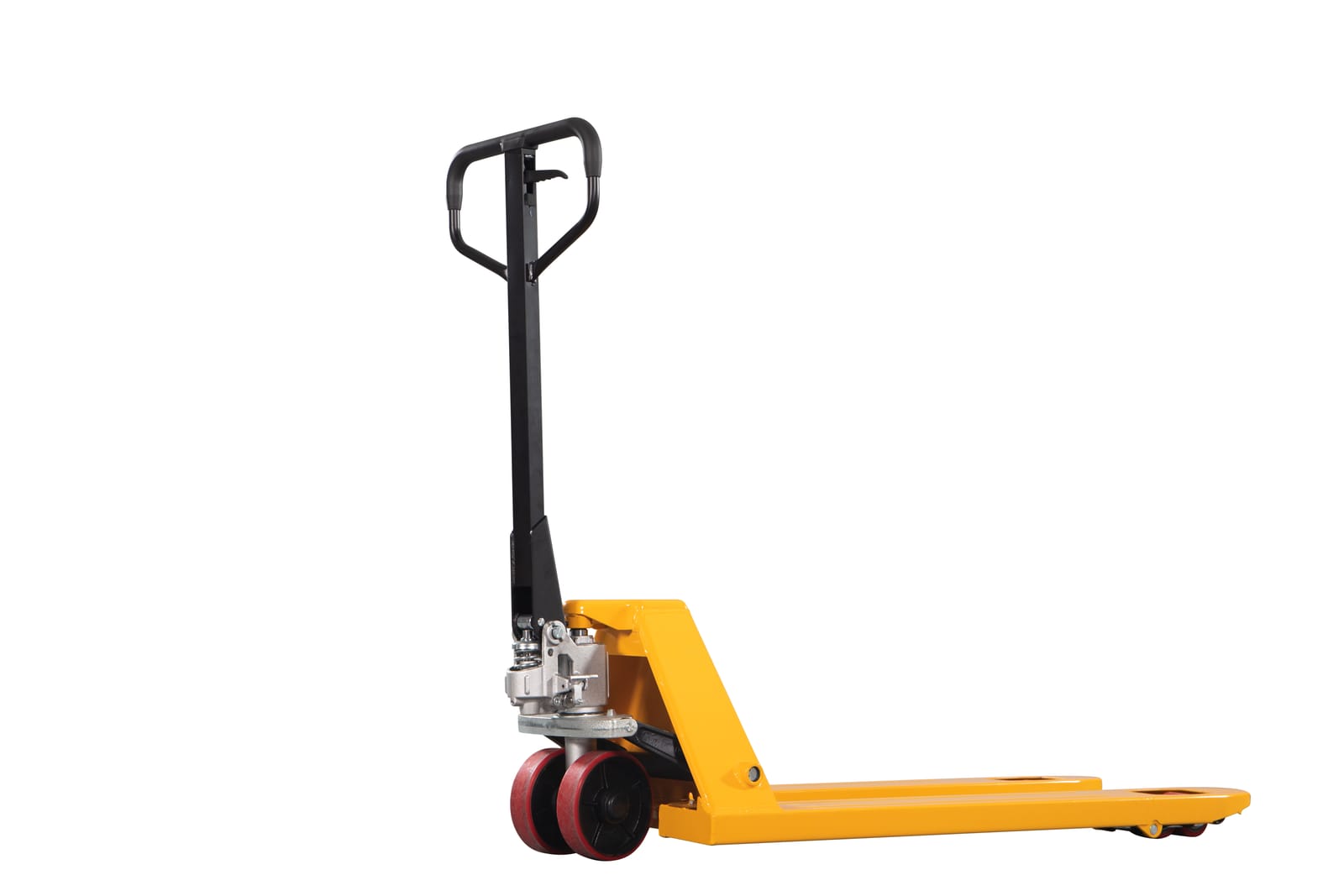

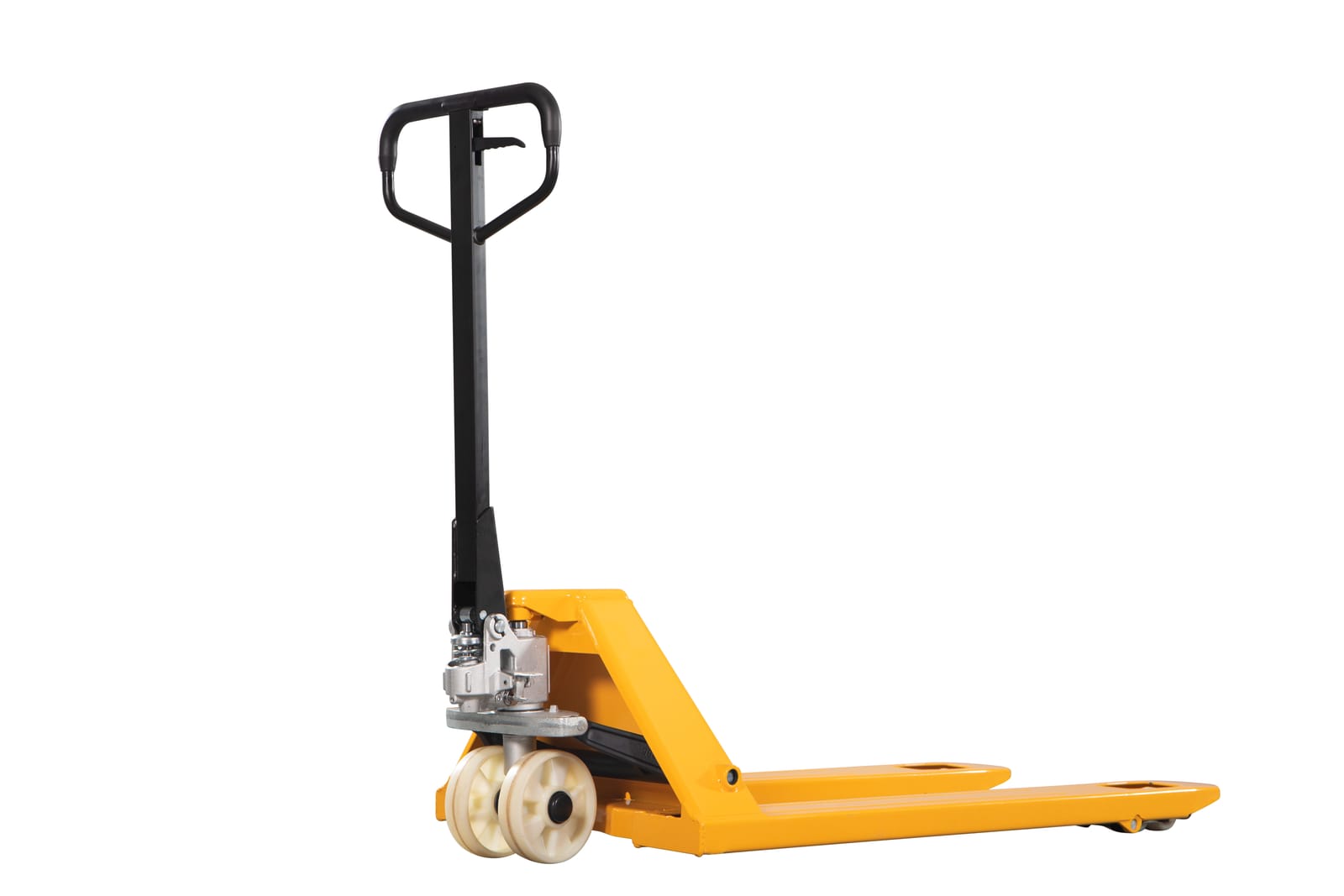

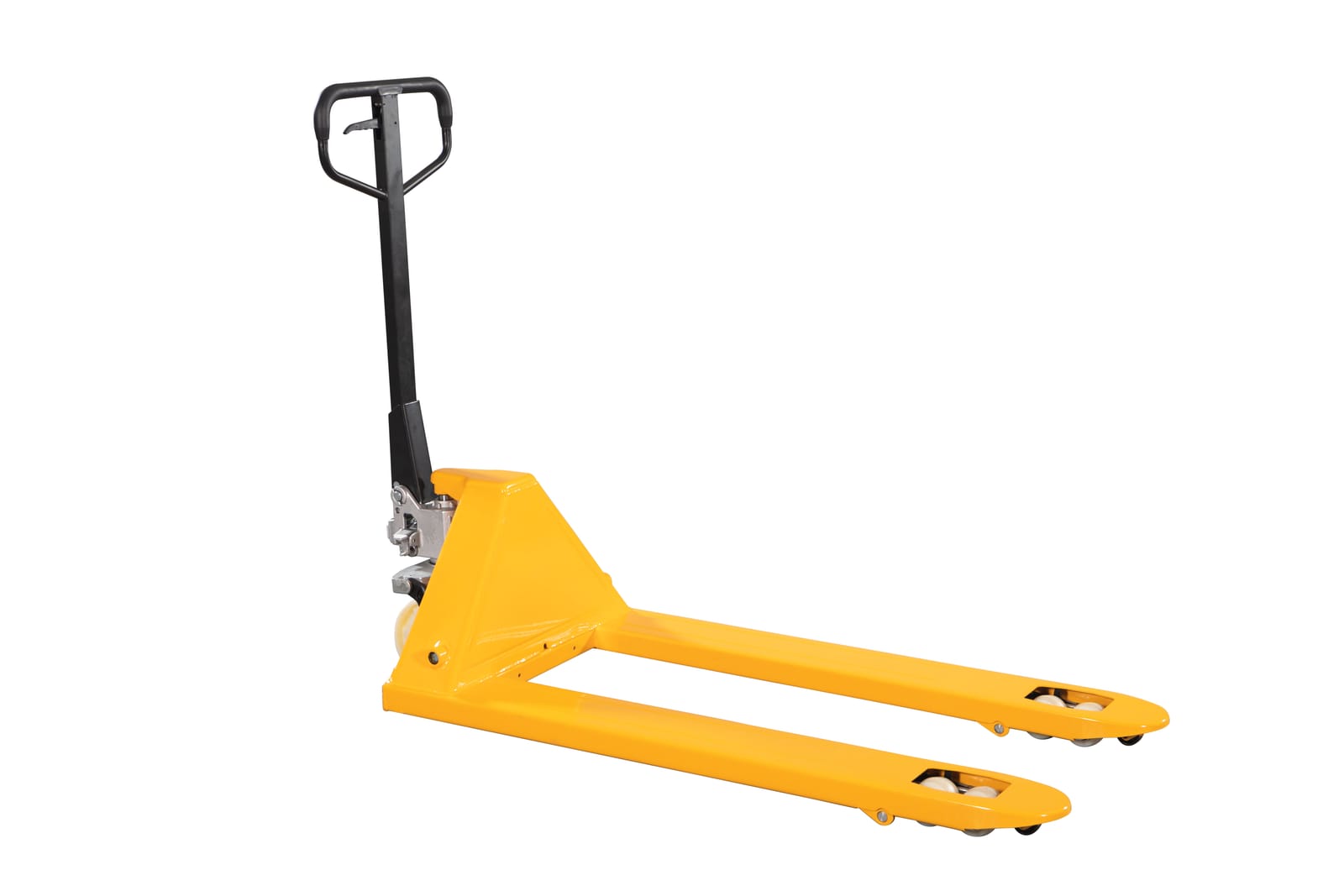

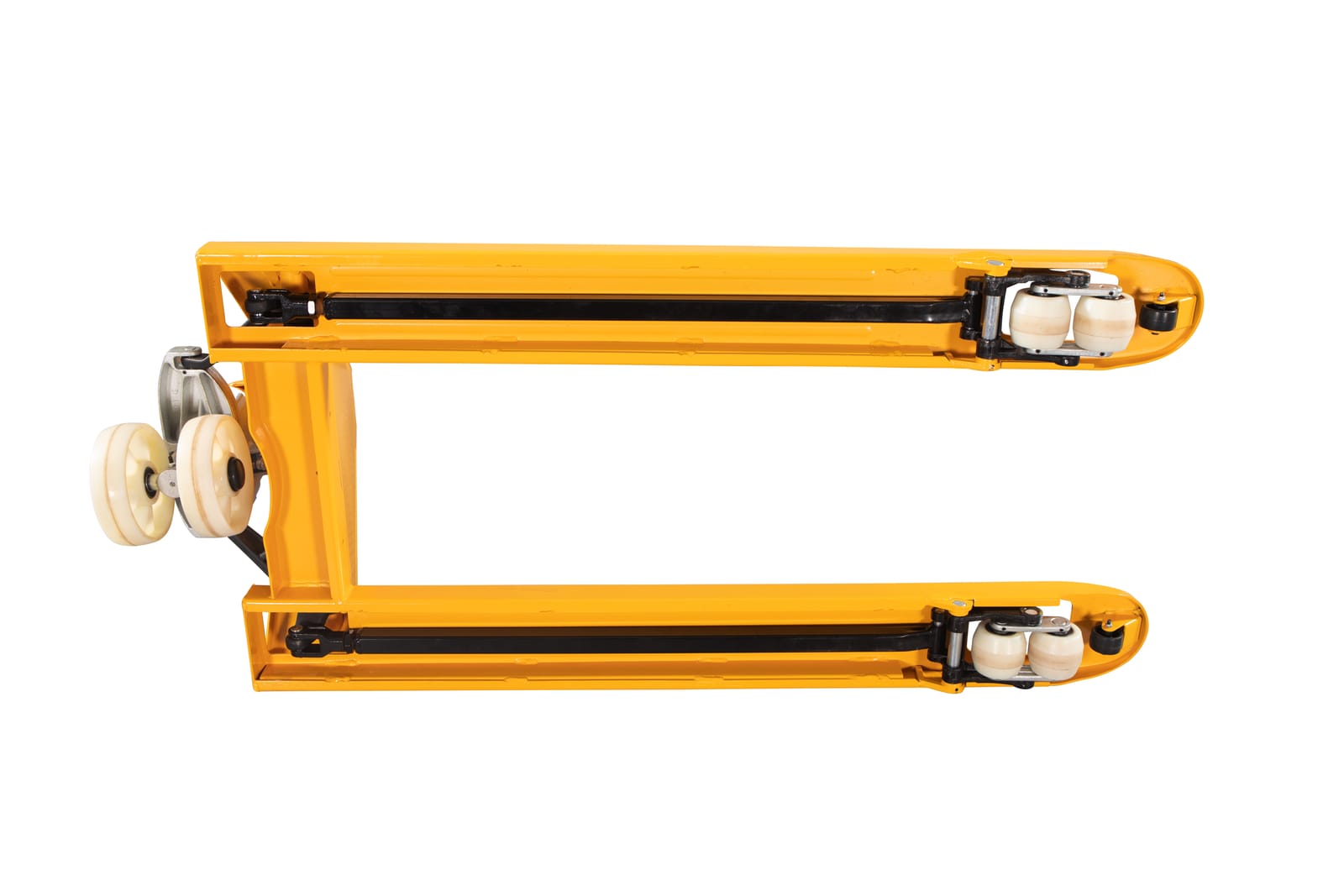

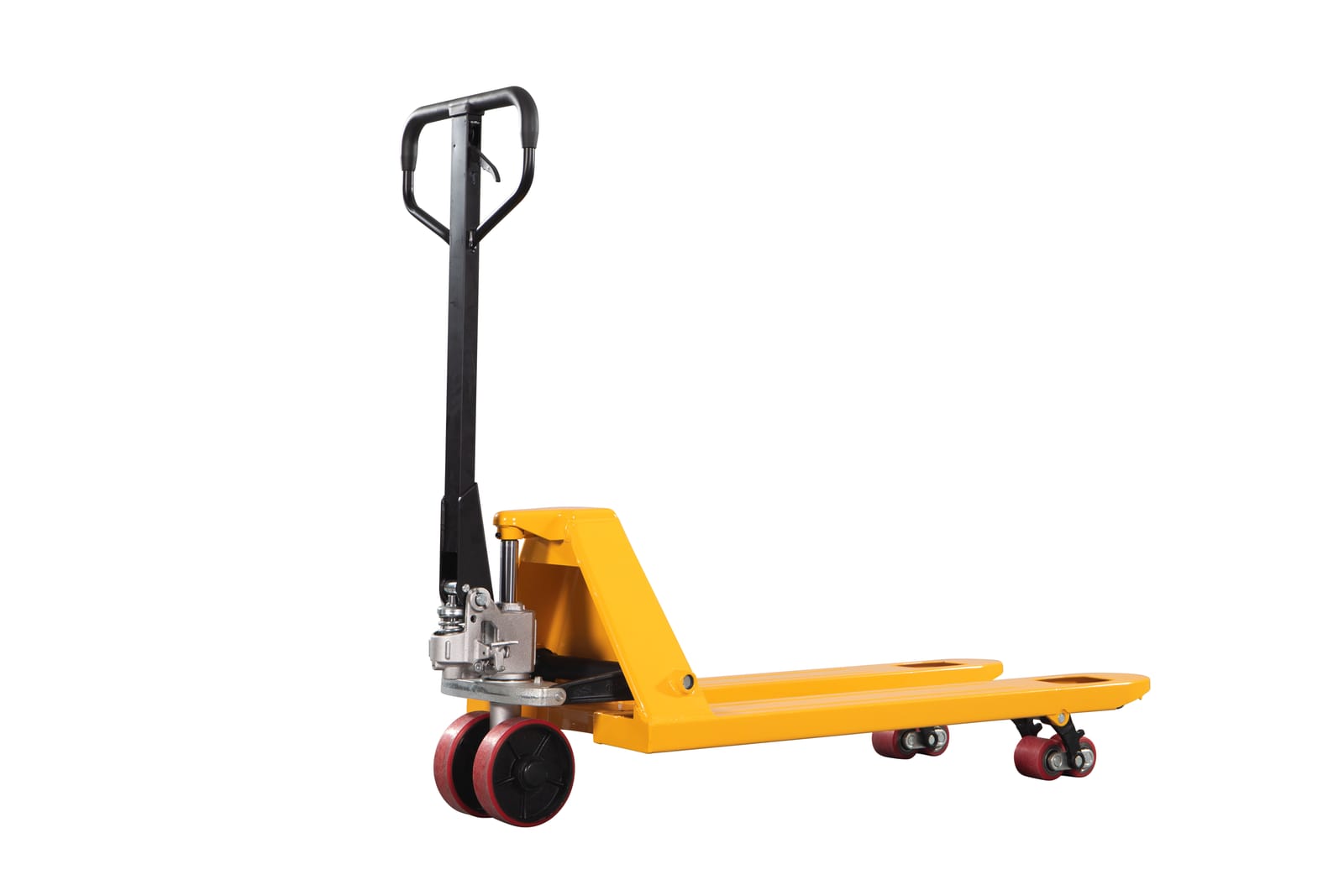

2.5 & 3-tonne hand pallet truck
Models: BF25-H BF30-H
Hand pallet trucks with lifting capacities of 2,500 and 3,000 kg.
- Chassis with 100% automated robotic welding for precision and strength
- Grooved forks: 400 kg more static load capacity than flat forks
- Handle lever release and foot pedal release as standard, adjustable lowering speed
- One-piece cast pump with removable small pump core for easy service; over 200,000 mechanical life tests
- Adjustable push rod to bring the forks back to the same height
Price on request
- Free quote, no obligation
- Service & spare parts in-house
- Shipping across Greece
Downloads
Brochures· 2
Certificates & test reports· 2
Specifications
Technical specifications
| Model | BF25-H | BF30-H |
|---|---|---|
| Rated capacity | 2500 kg | 3000 kg |
| Max. lift height | 195 / 205 mm | 195 / 205 mm |
| Lowered fork height | 75 / 85 mm | 75 / 85 mm |
| Fork length | 800 / 900 / 1000 / 1070 / 1150 / 1220 mm | 800 / 900 / 1000 / 1070 / 1150 / 1220 mm |
| Overall fork width | 520 / 550 / 685 mm | 520 / 550 / 685 mm |
| Travel | Manual | Manual |
| Lifting | Manual (hydraulic pump) | Manual (hydraulic pump) |
| Machine weight | 61.5–68.5 kg | 71–78.5 kg |
| Wheels | Polyurethane / rubber / nylon | Polyurethane / rubber / nylon |
| Lifting stroke | 120 mm | 120 mm |
| Single fork width | 160 mm | 160 mm |
| Fork steel thickness | 3 mm | 3.75 mm |
Data from the official STAXX catalogue. Specifications may be changed by the manufacturer. Download the catalogue (PDF)
