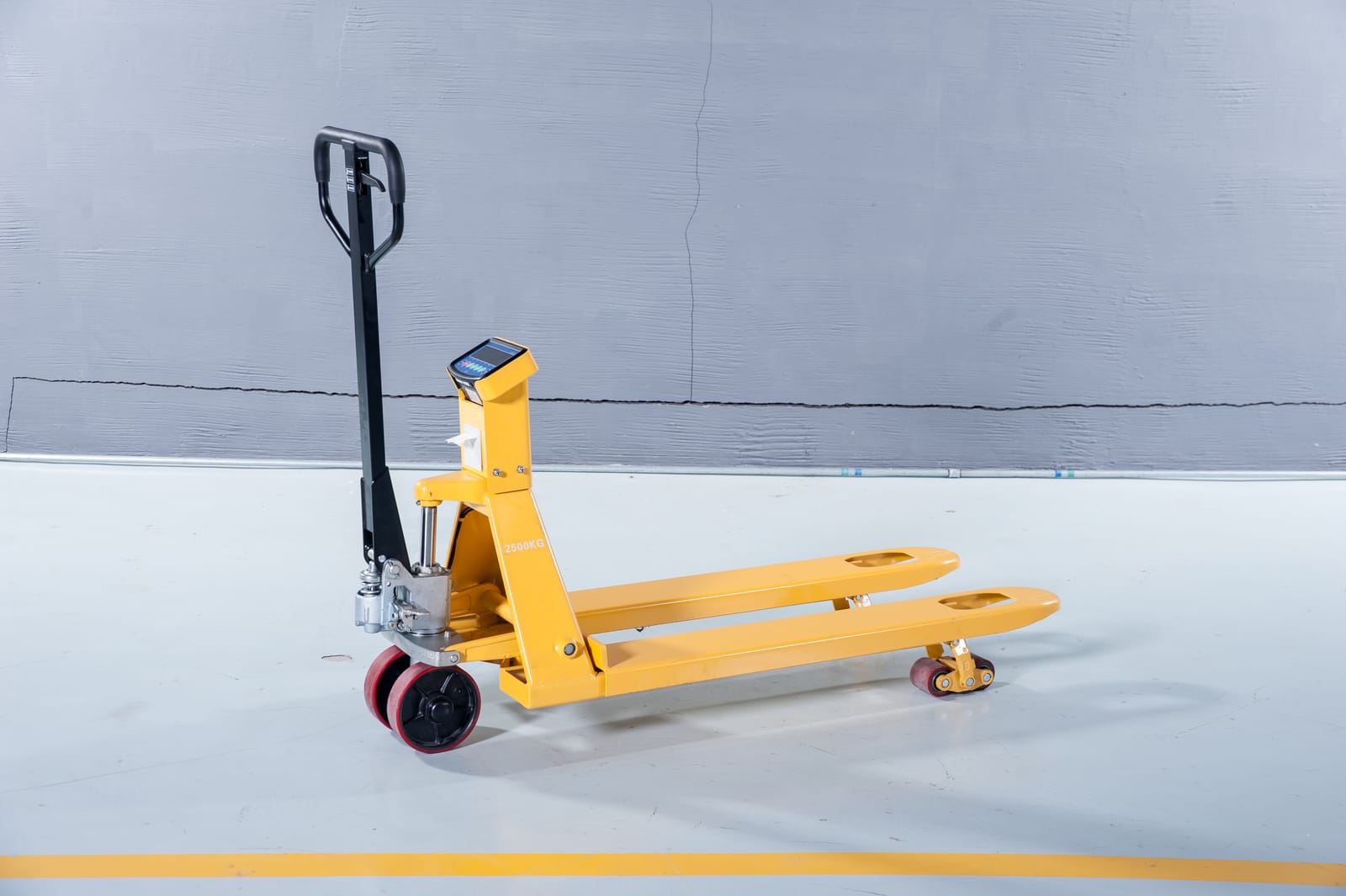

Weighing pallet truck
Models: WH-25ES WH-30ES

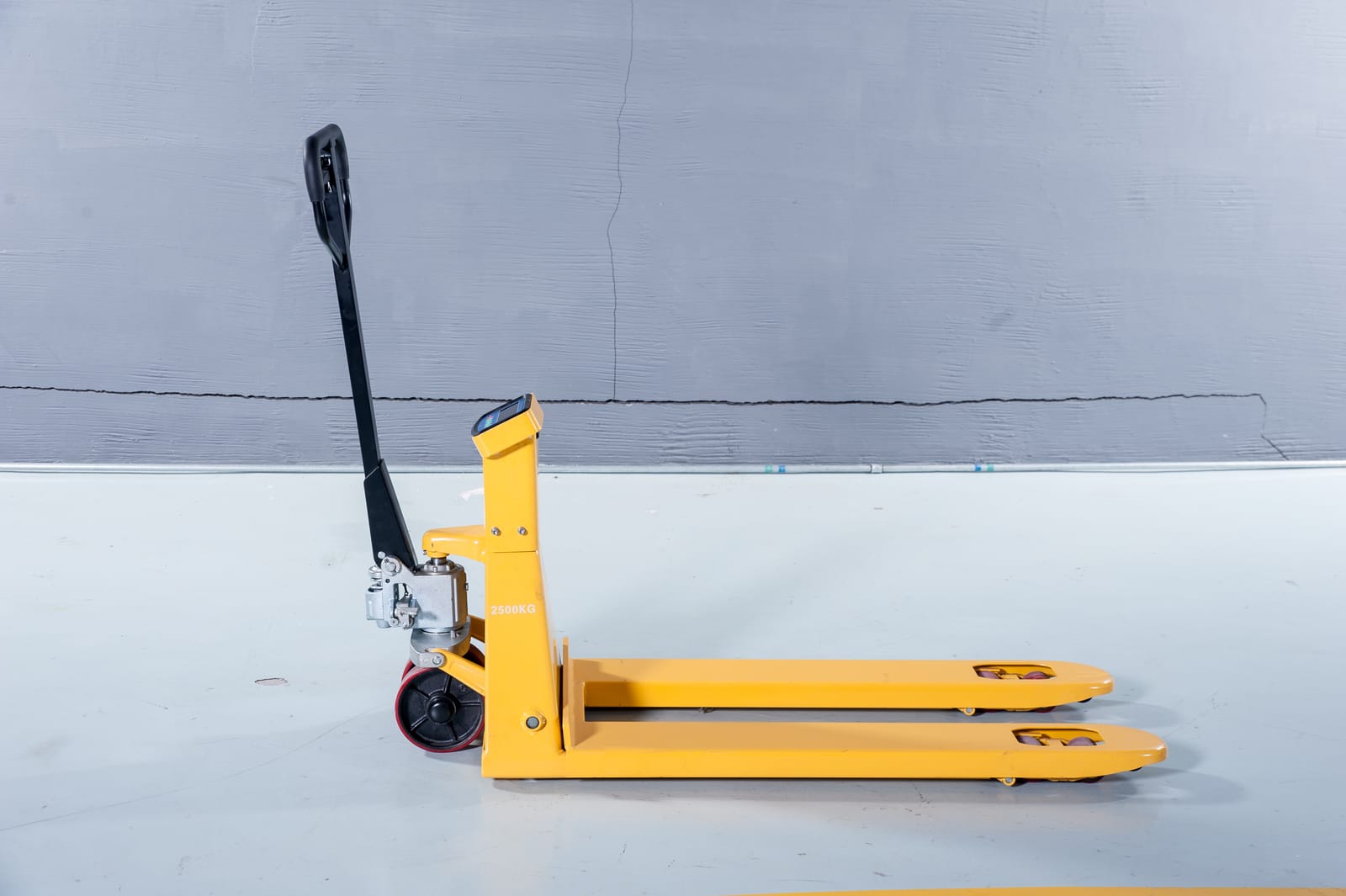

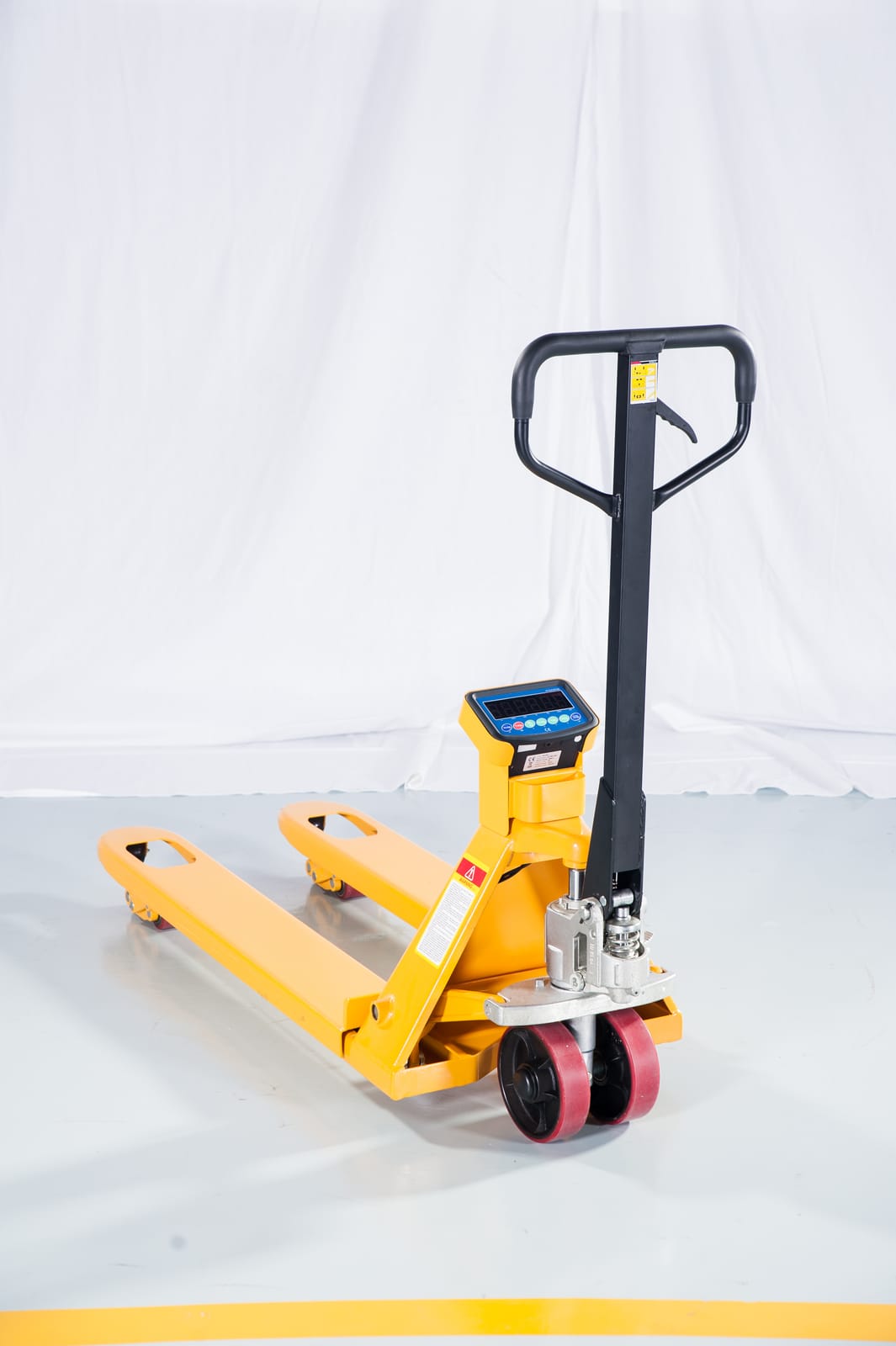

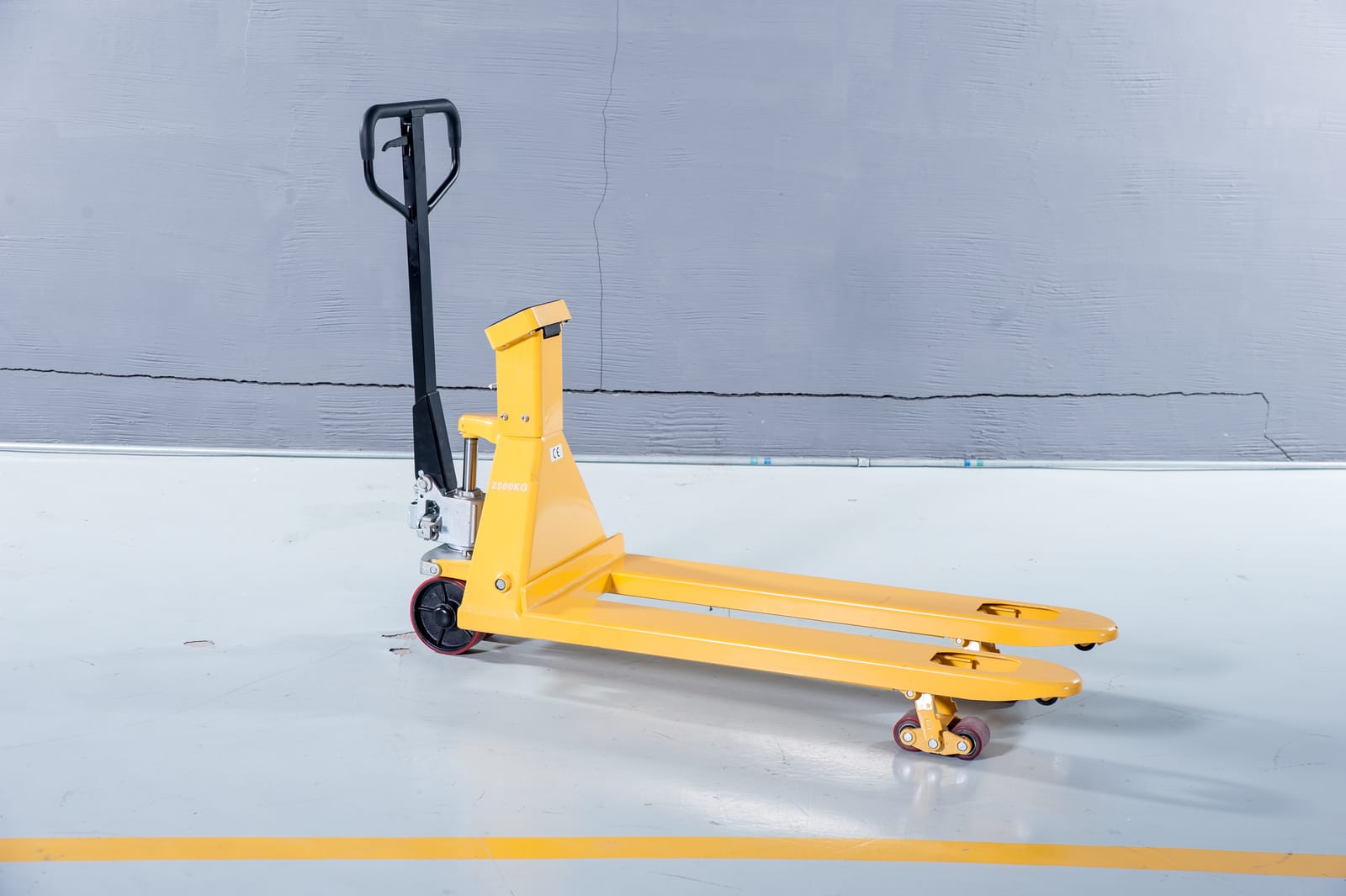

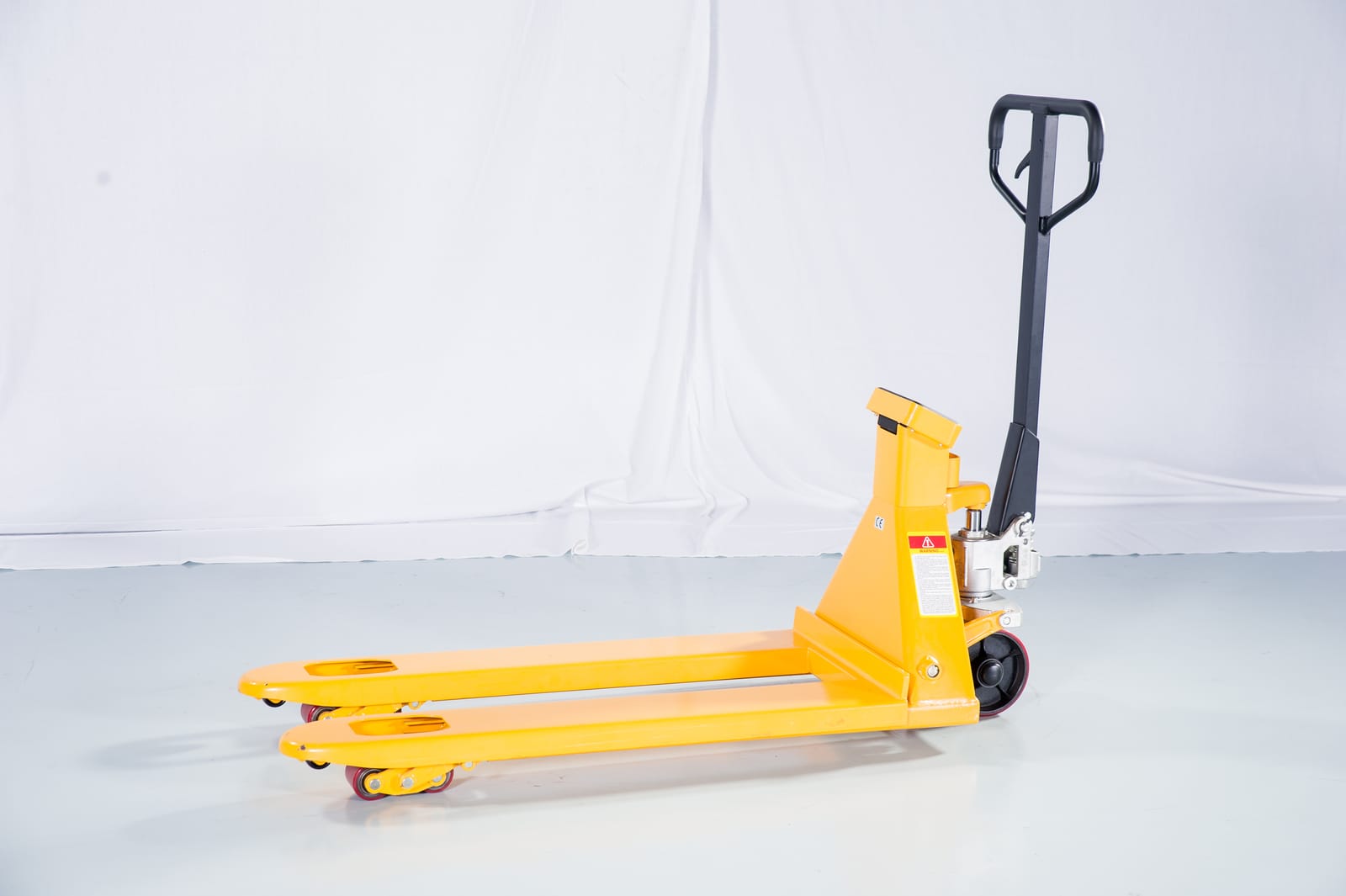

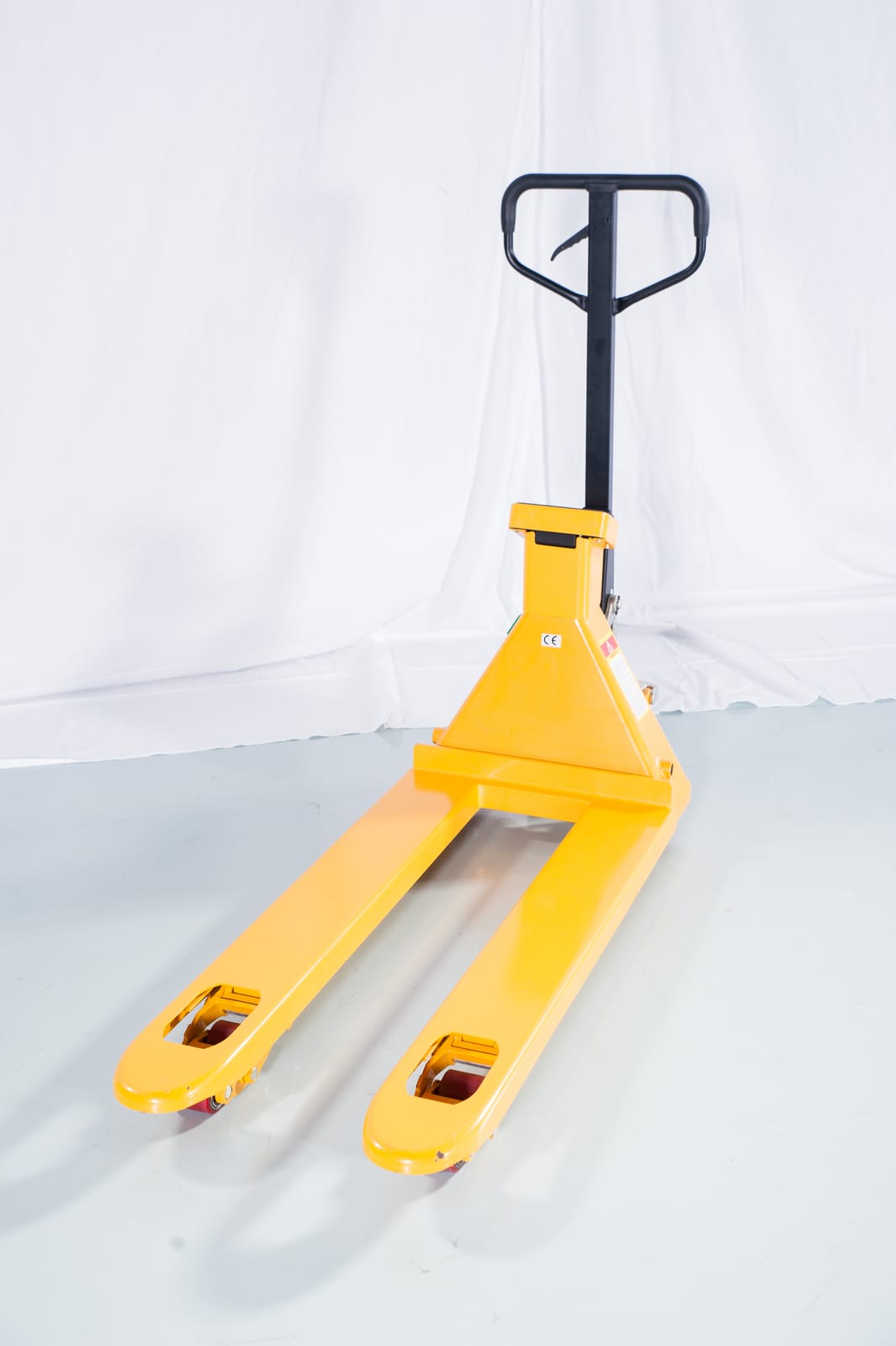

Pallet truck with a built-in scale for weighing the load during transport.
- Built-in scale with 4 load cells, readings in kg or lb

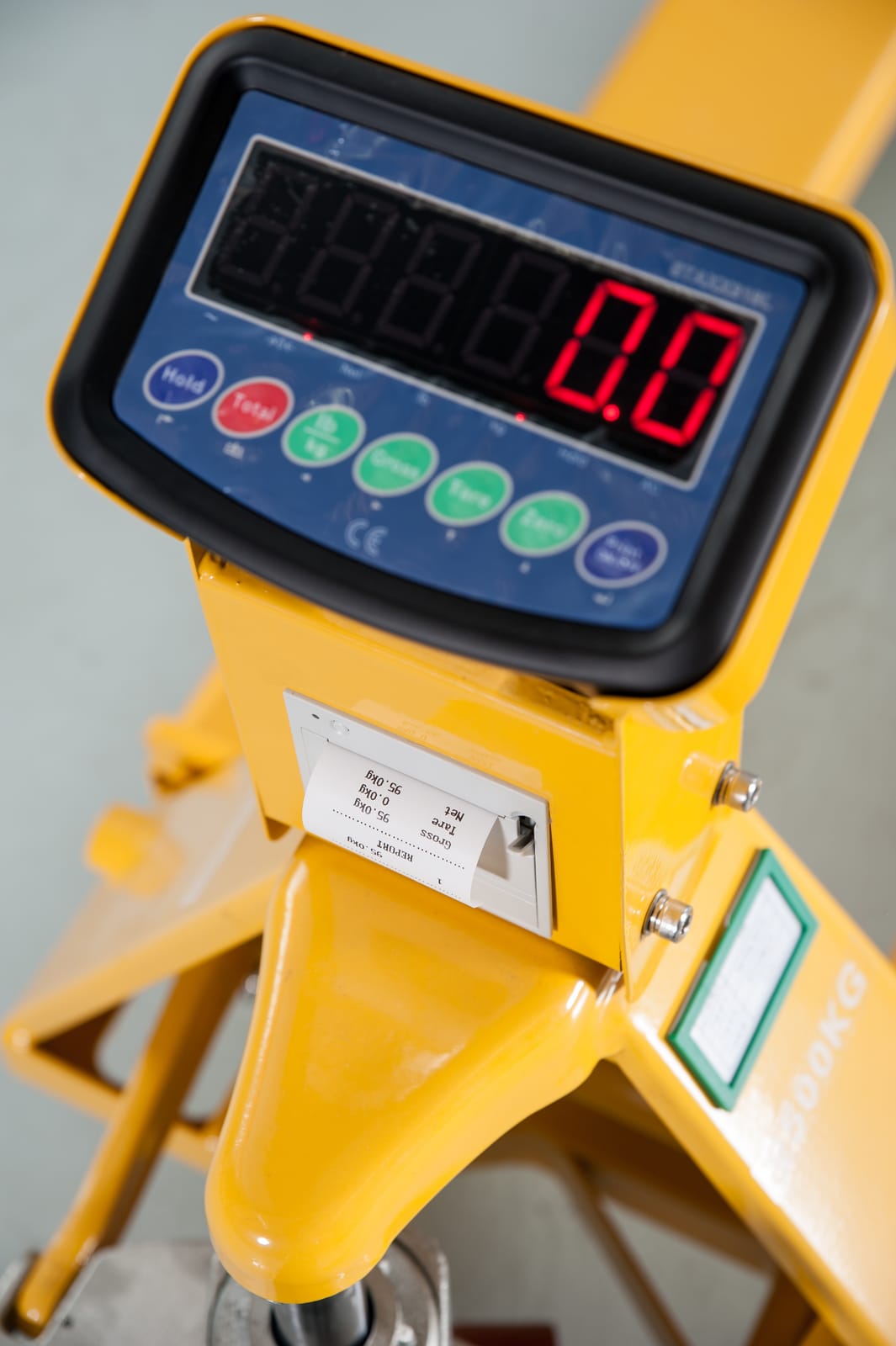

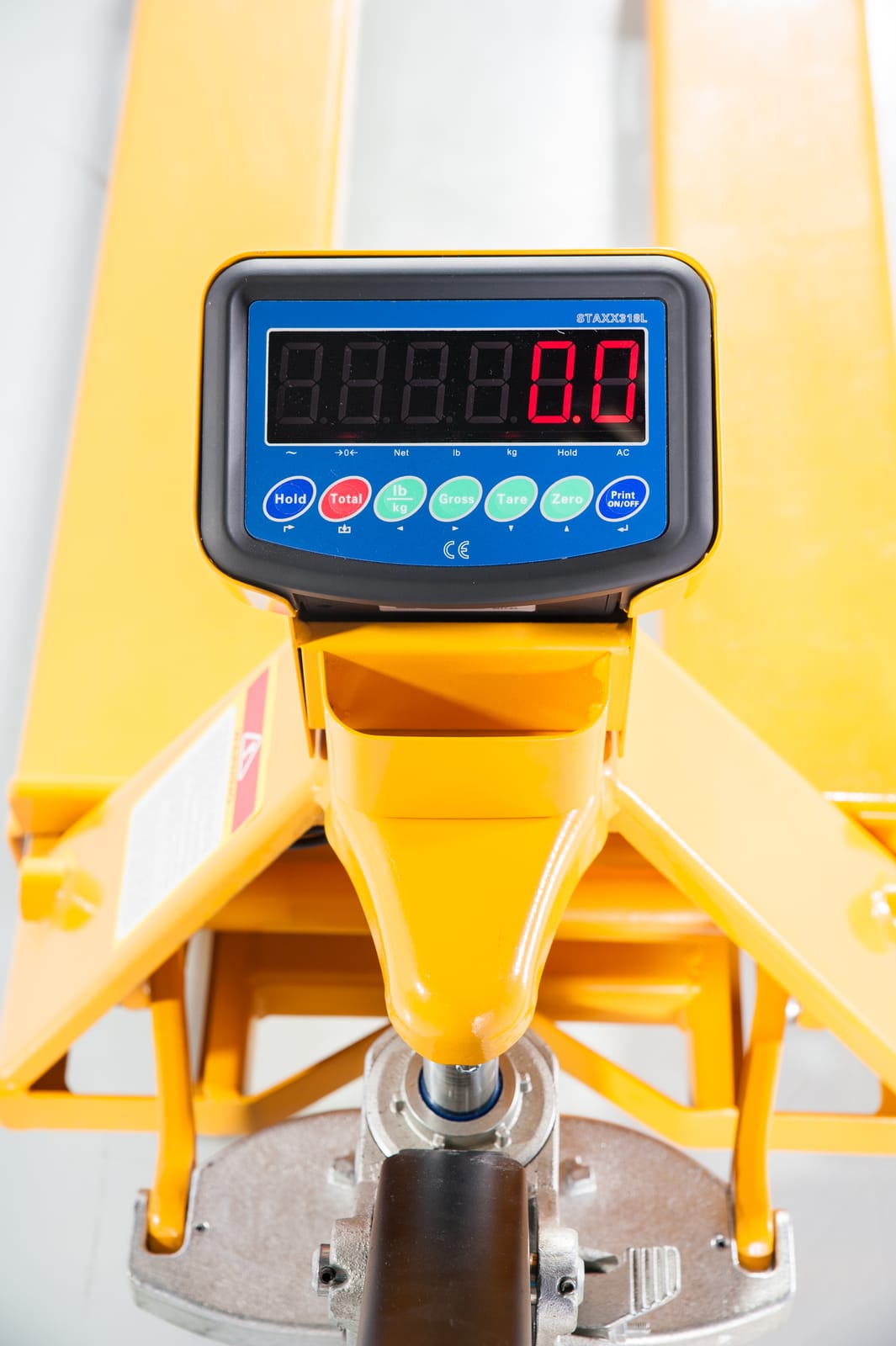

- 6-digit 32 mm LED display with 7 keys: tare, hold, accumulation, counting
- Rechargeable 6 V / 4 Ah battery, automatic shutdown to save energy
- Optional built-in printer
- Fully stainless (304) version available for food and chemical industries
Price on request
- Free quote, no obligation
- Service & spare parts in-house
- Shipping across Greece
Downloads
Brochures· 2
User manuals· 2
Certificates & test reports· 2
Specifications
Technical specifications
| Model | WH-25ES | WH-30ES |
|---|---|---|
| Rated capacity | 2500 kg | 3000 kg |
| Max. lift height | 198 mm | 198 mm |
| Lowered fork height | 78 mm | 78 mm |
| Fork length | 1150 / 1220 mm | 1150 / 1220 mm |
| Overall fork width | 540 / 680 mm | 540 / 680 mm |
| Travel | Manual | Manual |

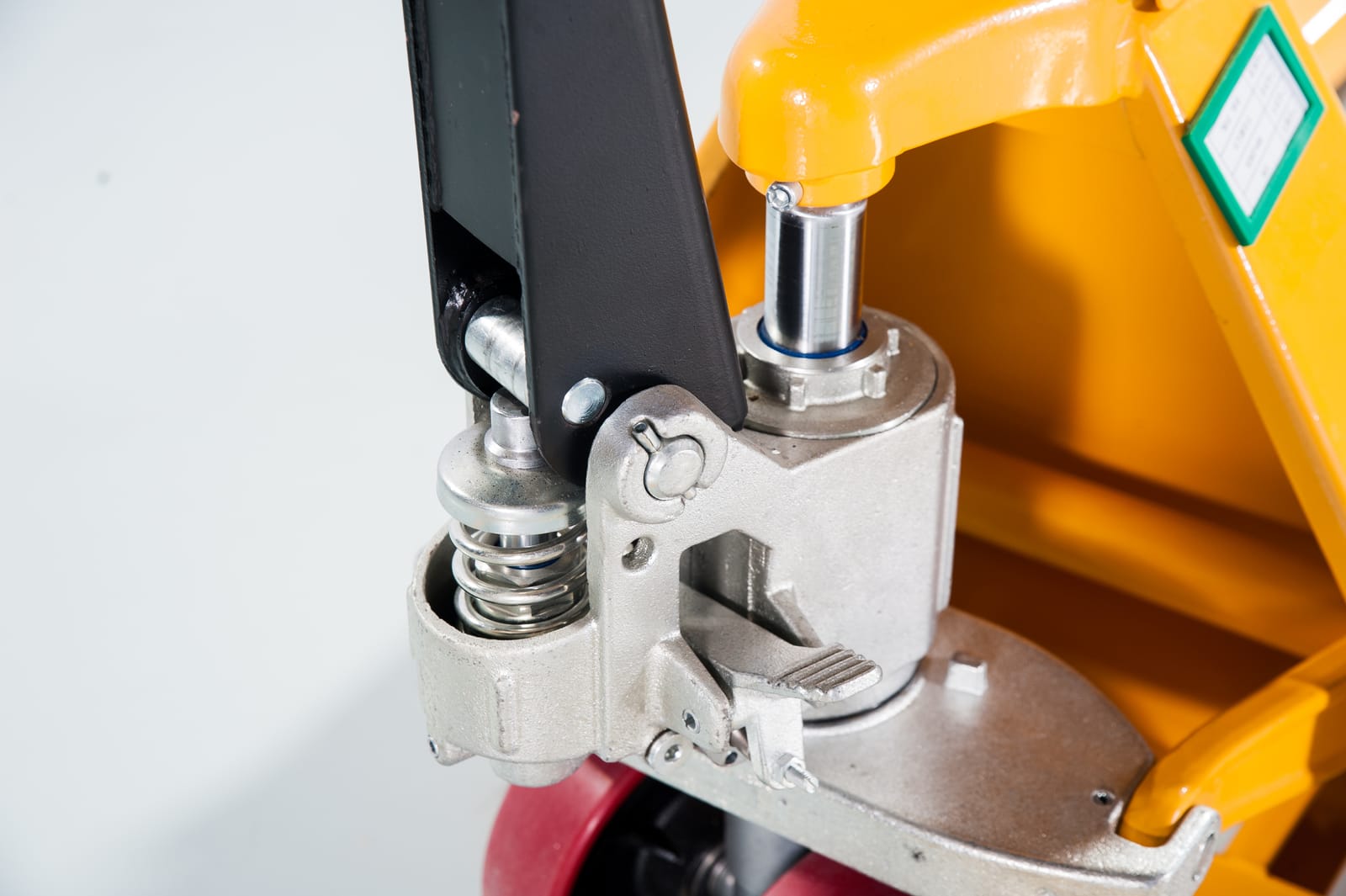

| Lifting | Manual (hydraulic pump) | Manual (hydraulic pump) |
| Battery | 6 V / 4 Ah | 6 V / 4 Ah |
| Machine weight | 96–108.5 kg | 98–108.5 kg |
| Wheels | Polyurethane / nylon | Polyurethane / nylon |
| Weighing accuracy | ±0.5‰ | ±0.5‰ |
| Lifting stroke | 120 mm | 120 mm |
| Single fork width | 160 mm | 160 mm |
Data from the official STAXX catalogue. Specifications may be changed by the manufacturer. Download the catalogue (PDF)
Video
Watch it in action
Video from the official STAXX YouTube channel.
