Hand pallet trucks

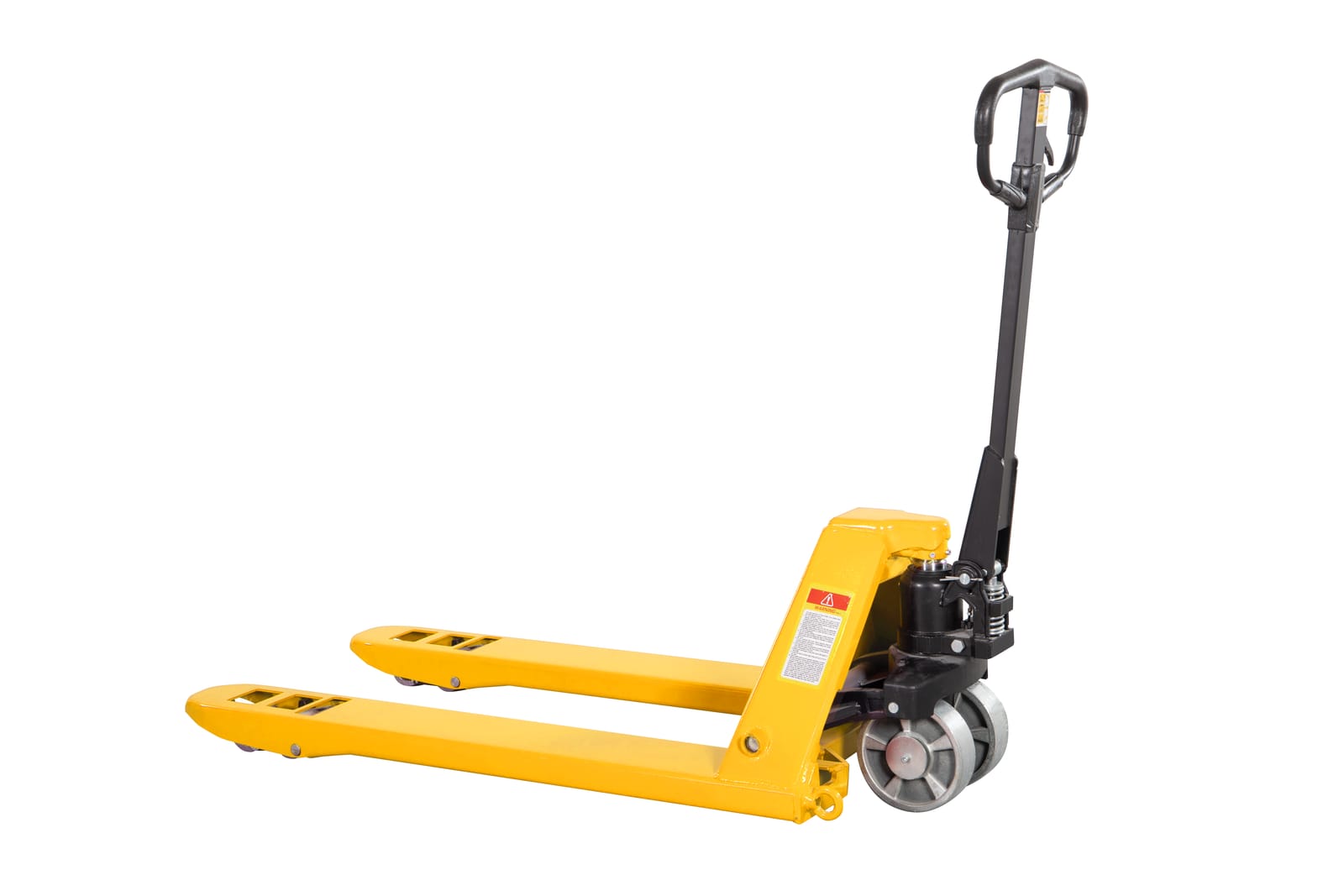

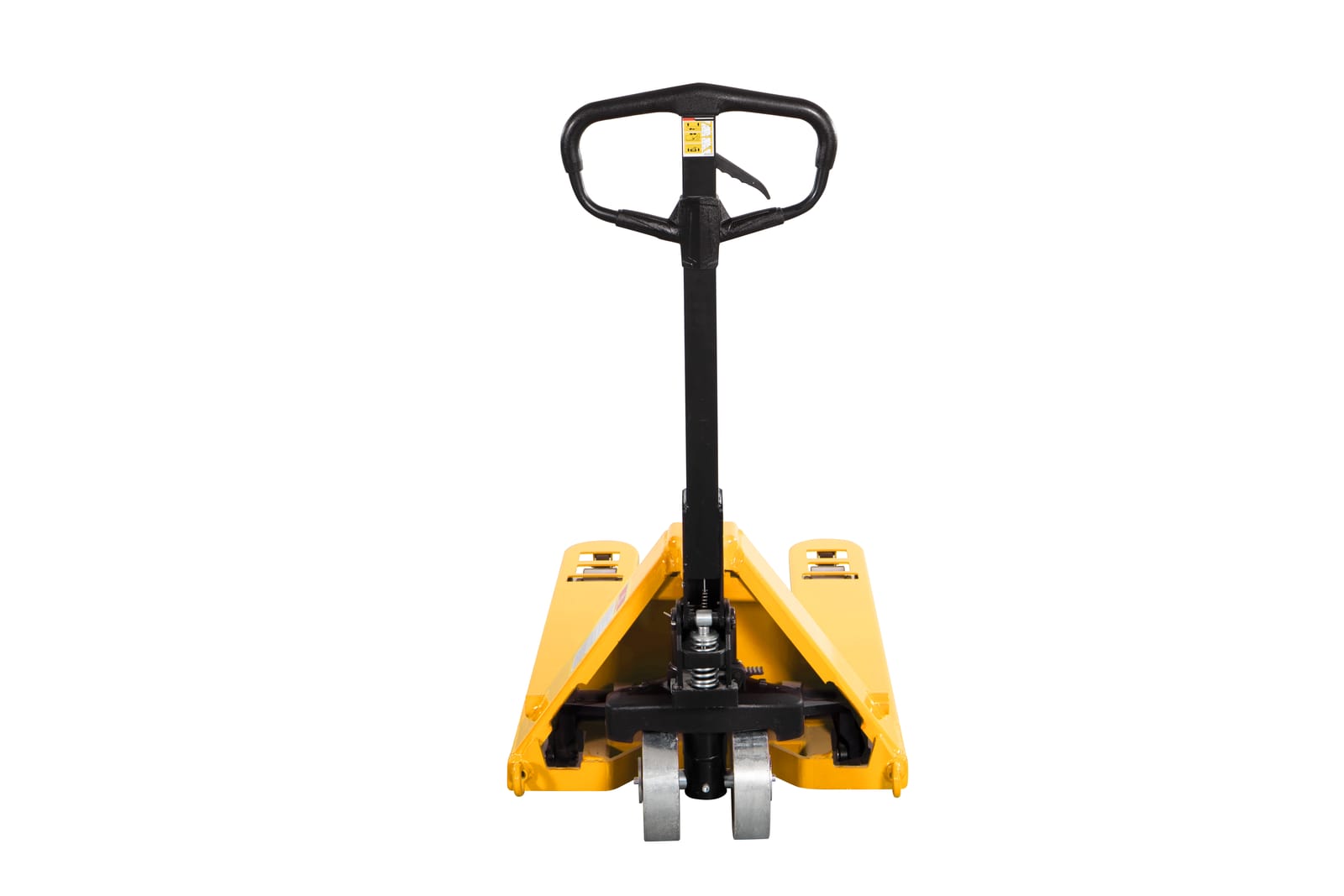

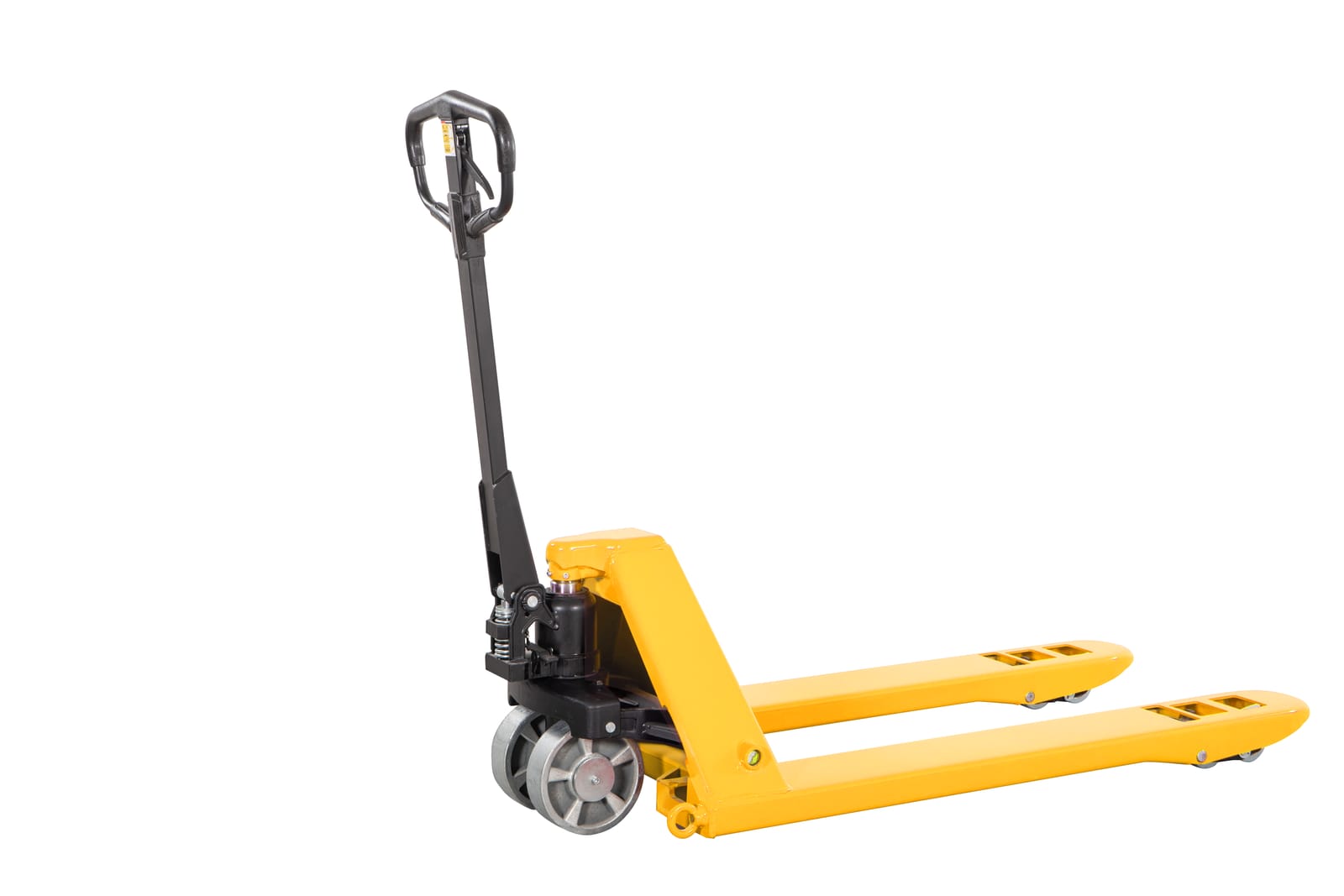

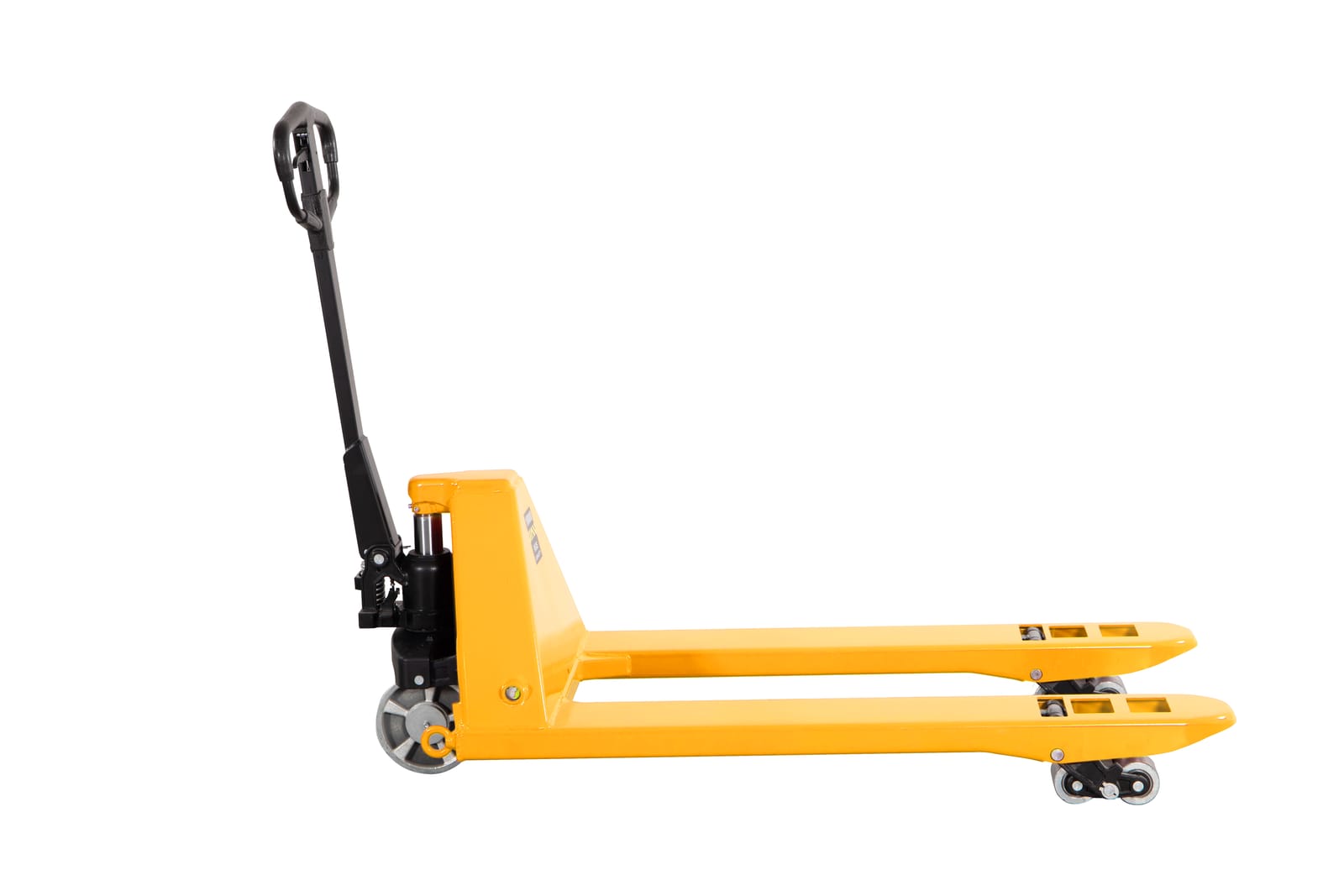

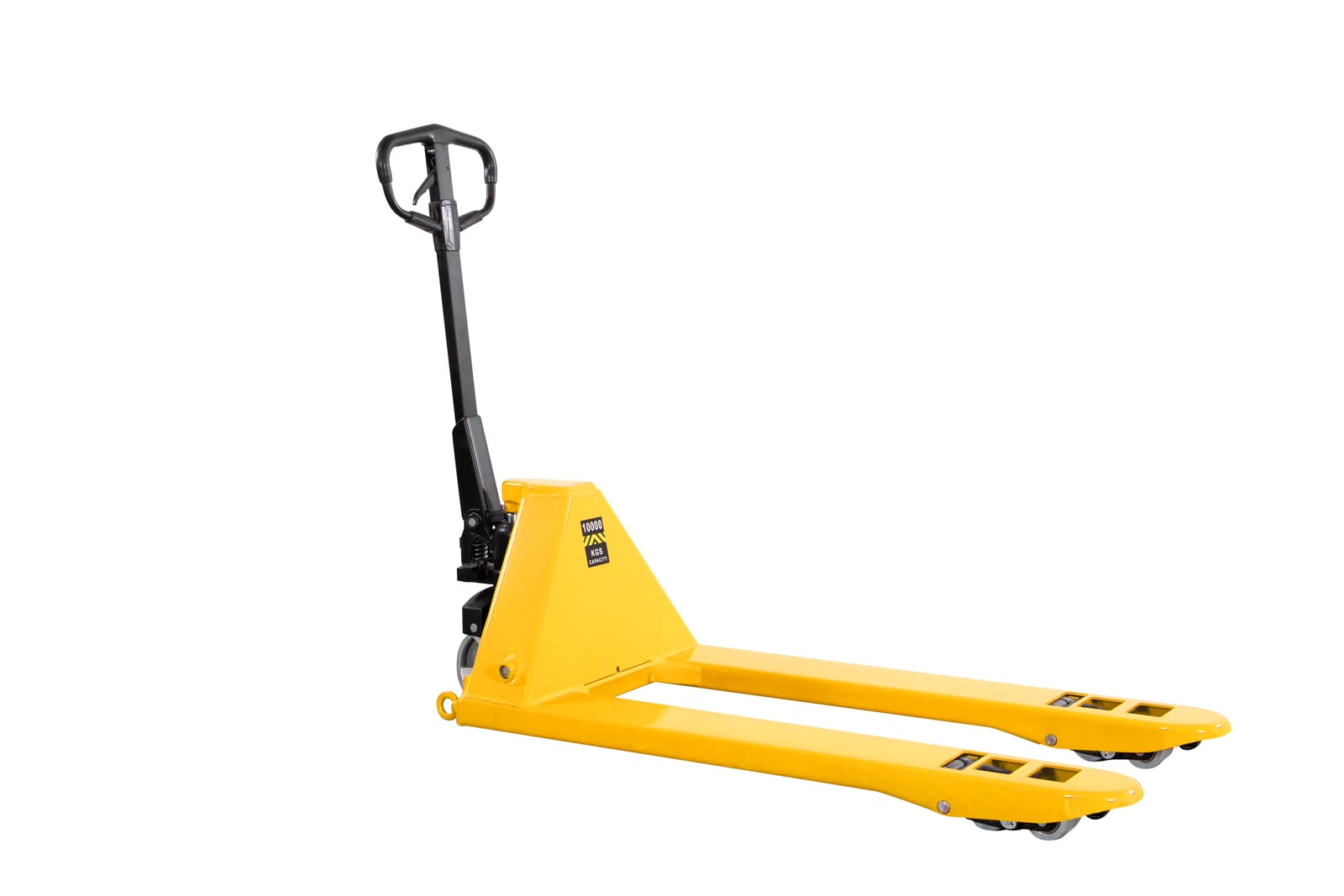

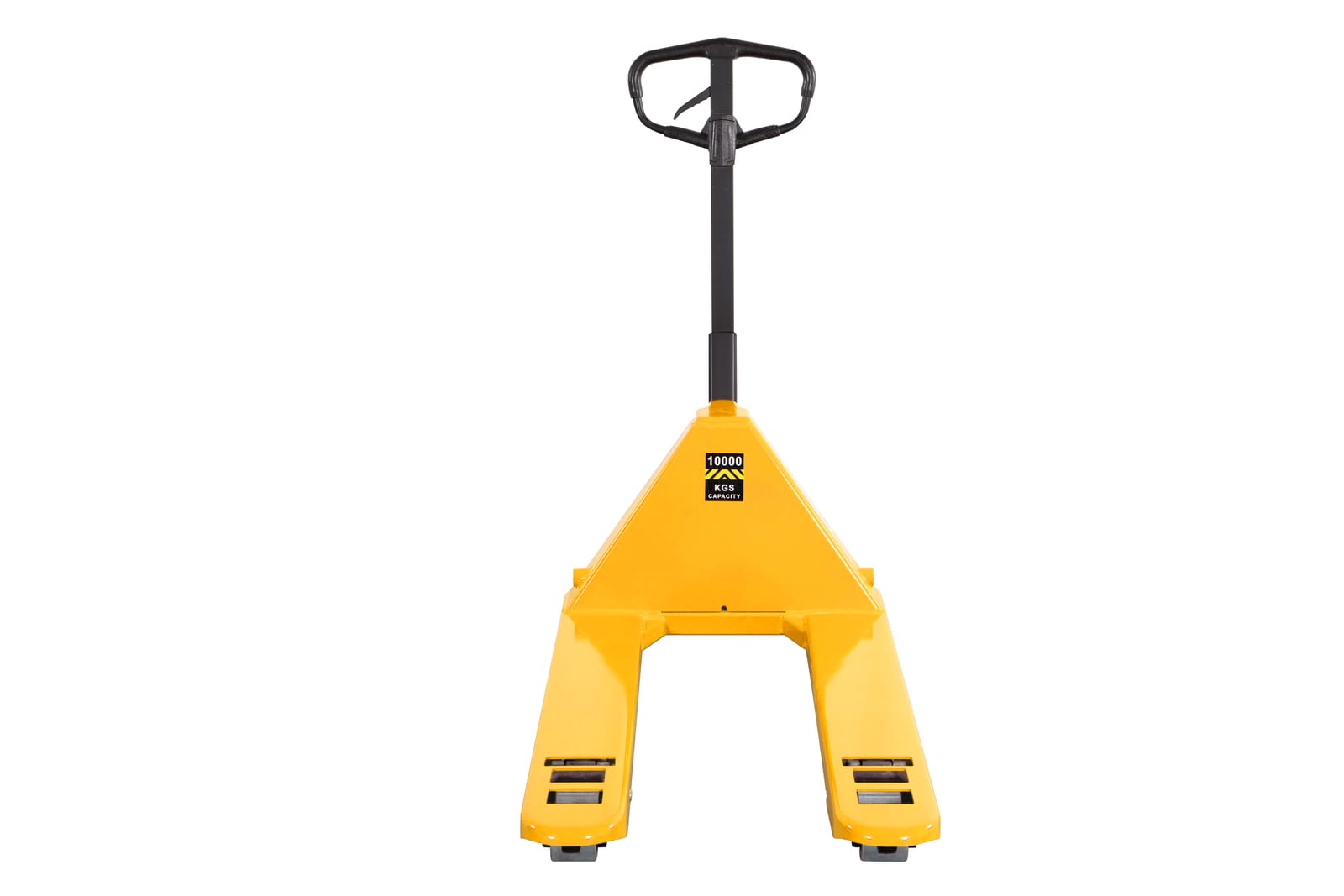

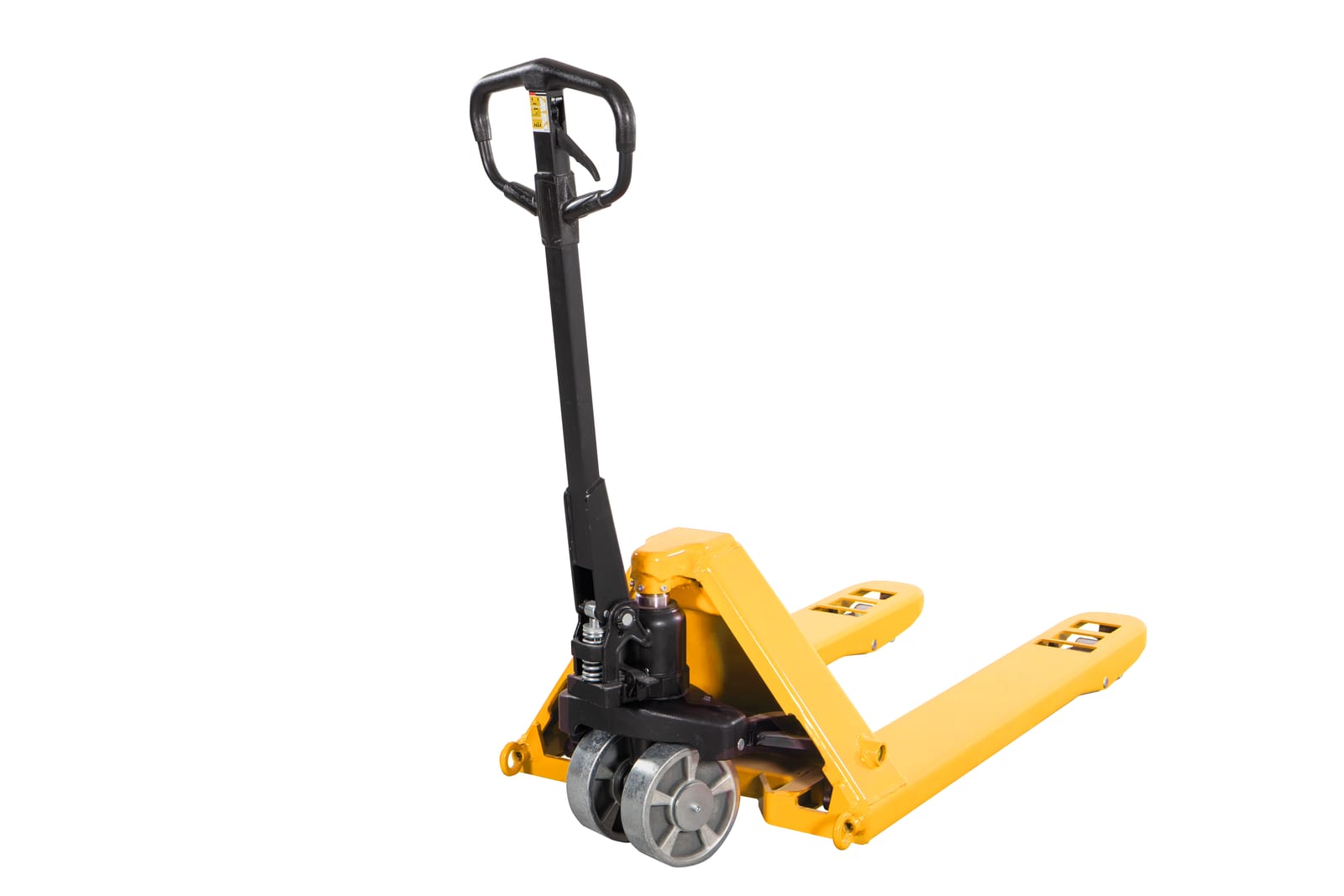

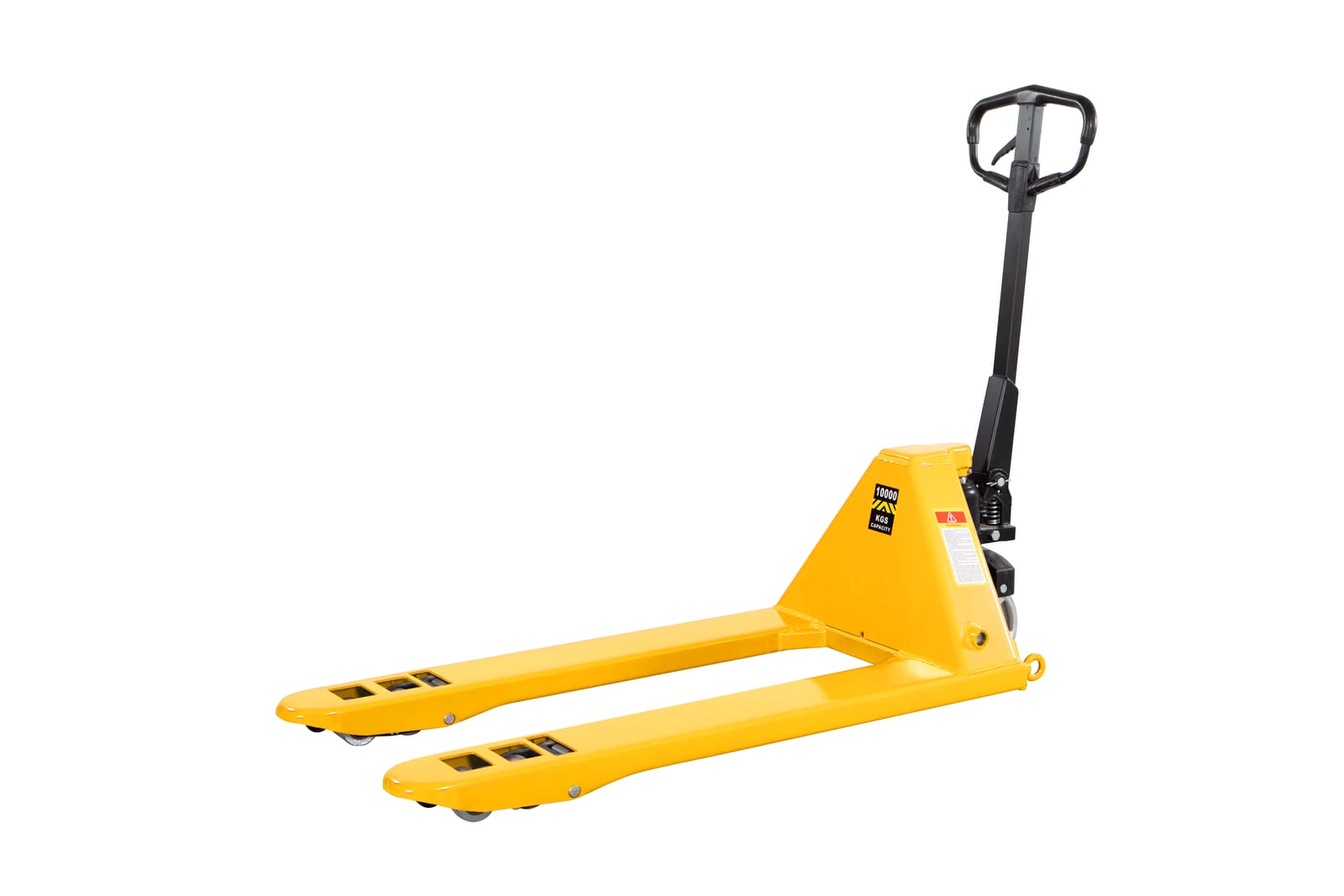

10-tonne hand pallet truck
Models: BF100
Heavy-duty pallet truck for loads up to 10,000 kg.
- Heavy duty, torsion-resistant thanks to a very strong high-quality steel profile
- Cast hydraulic pump with overload valve and fine control of lifting and lowering
- 16×40 mm flat-steel stiffeners on the forks and adjustable push rod
- 12 copper bushings at rocker arms and wheel frames for quiet running and long service life
- Custom fork lengths available: 1500, 1800 or 2000 mm
Price on request
- Free quote, no obligation
- Service & spare parts in-house
- Shipping across Greece
Downloads
Specifications
Technical specifications
| Rated capacity | 10000 kg |
|---|---|
| Max. lift height | 200 mm |
| Lowered fork height | 90 mm |
| Fork length | 1150 / 1220 mm |
| Overall fork width | 550 / 685 mm |
| Travel | Manual |
| Lifting | Manual (hydraulic pump) |
| Wheels | Iron |
| Lifting stroke | 110 mm |
| Single fork width | 176 mm |
| Fork steel thickness | 5 mm |
Data from the official STAXX catalogue. Specifications may be changed by the manufacturer. Download the catalogue (PDF)
