Counterbalance & reach

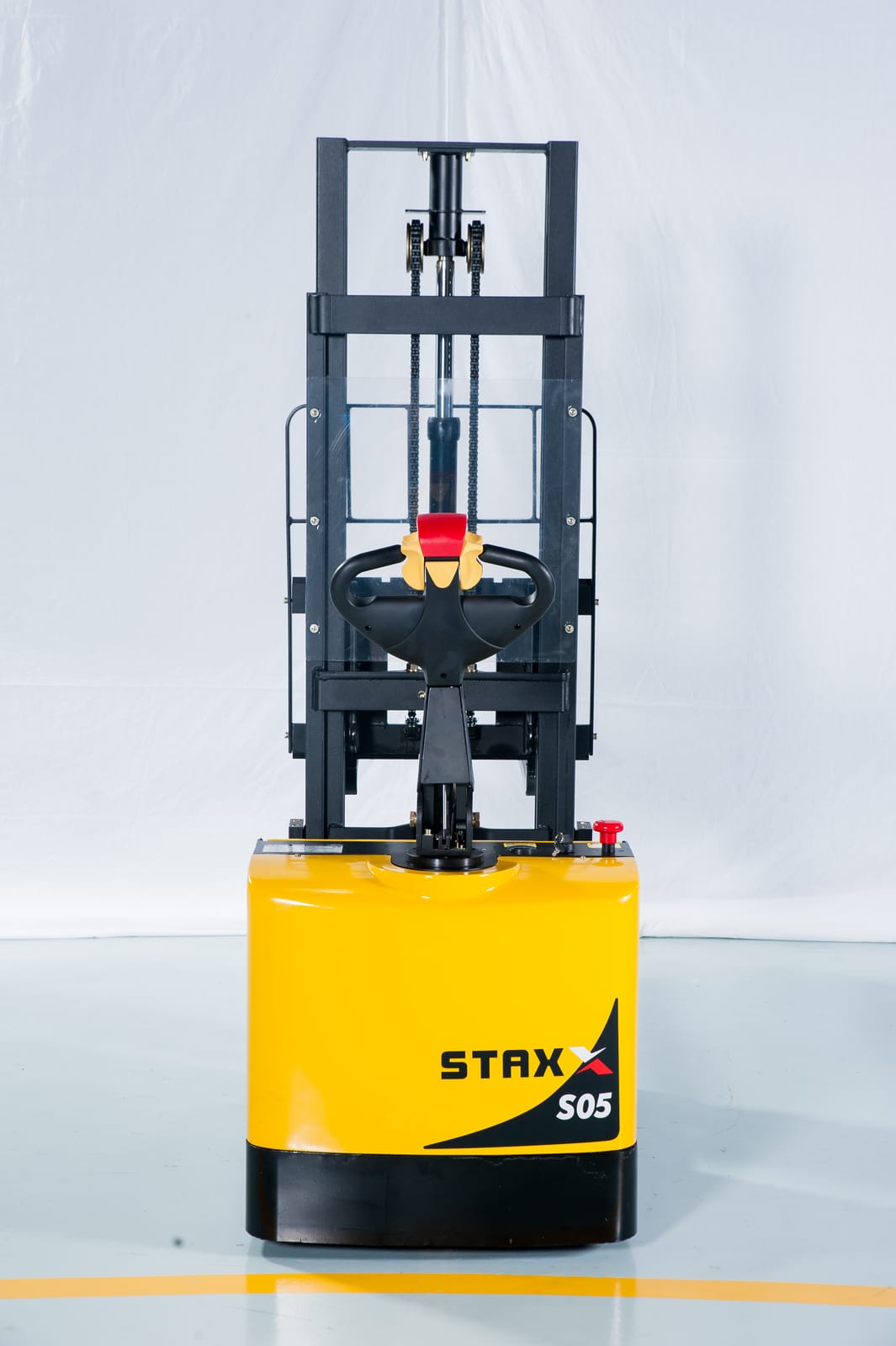

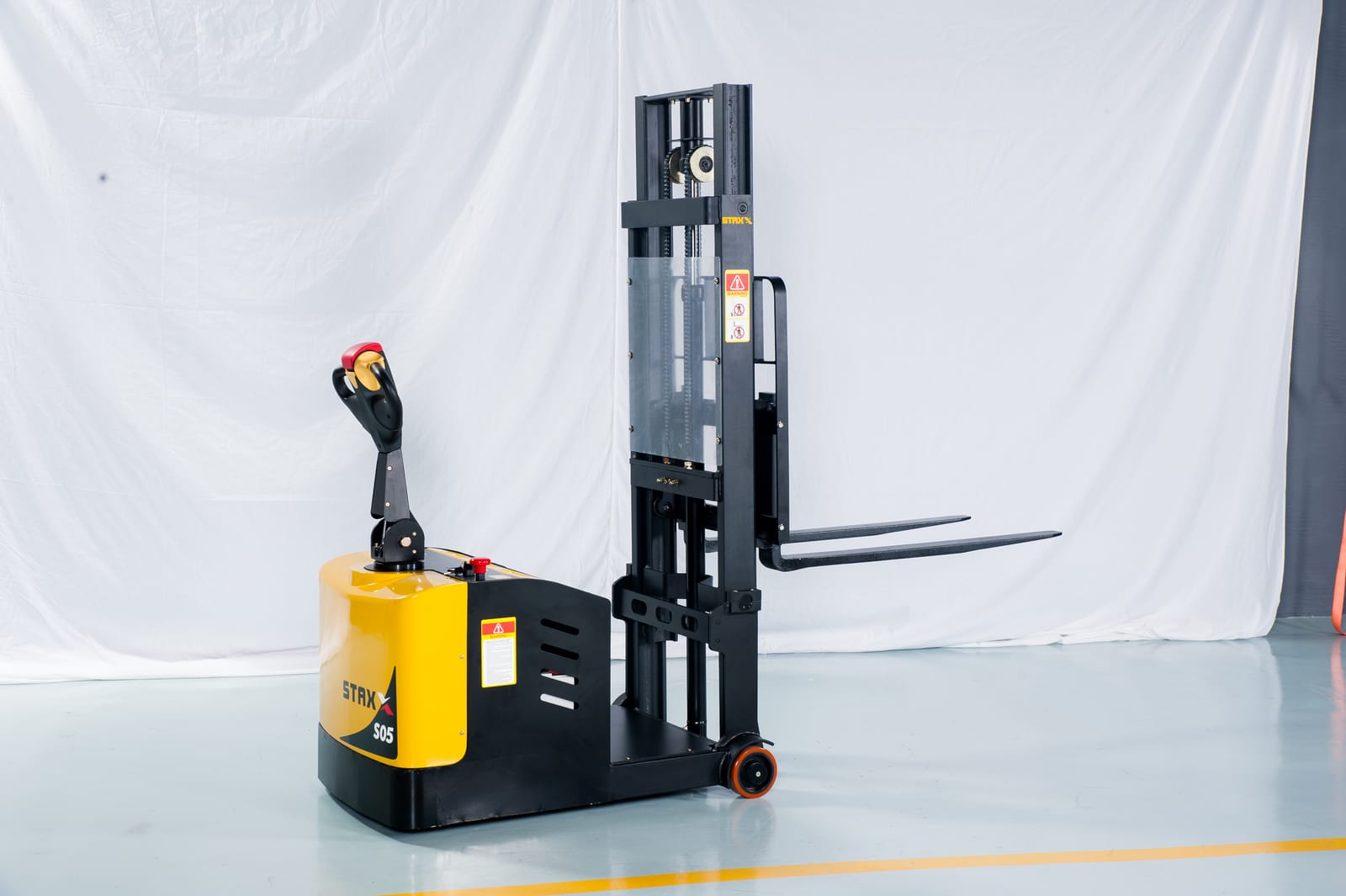

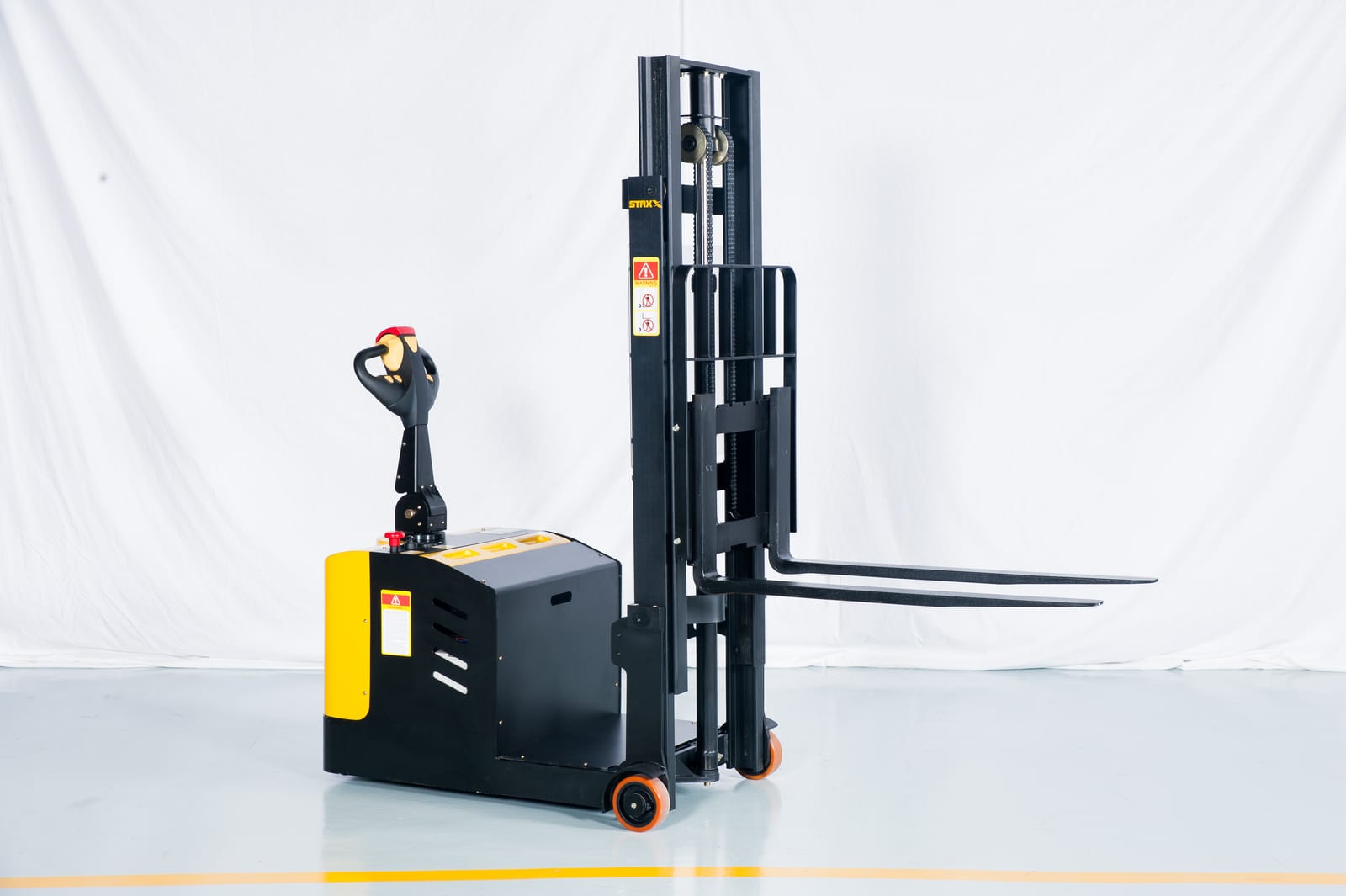

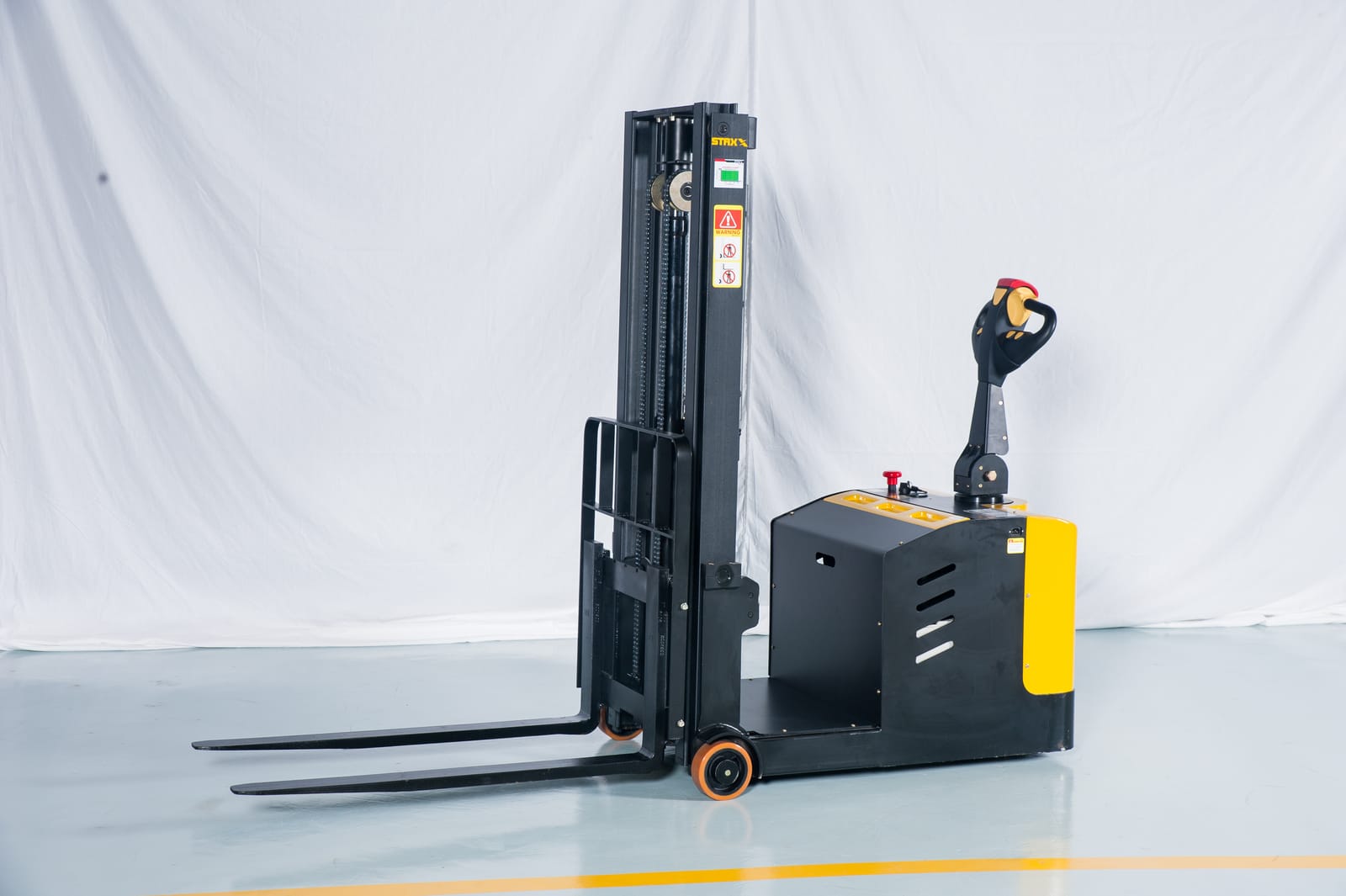

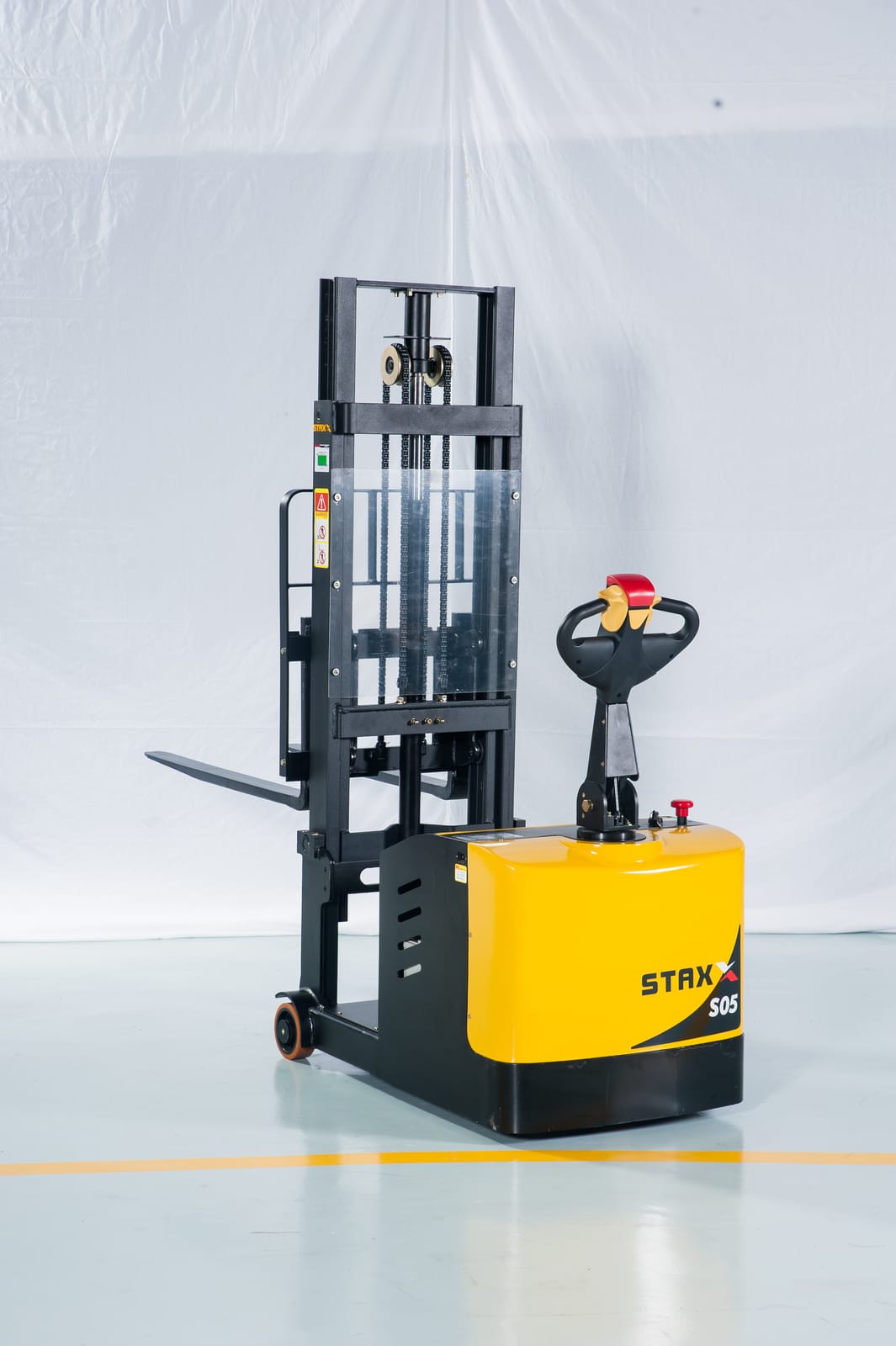

Compact electric counterbalance pallet stacker
Models: CBES500 CBES750
Electric counterbalance stackers, 500 and 750 kg, with no front legs.
- Compact counterbalance stacker with no base legs and adjustable forged forks – for confined areas
- C+H mast for added strength
- Options: mast tilt, free-lift Duplex mast, electric power steering, platform, protection arm
- Optional remote control for lifting/lowering, ideal for picking goods on trailers
Price on request
- Free quote, no obligation
- Service & spare parts in-house
- Shipping across Greece
Downloads
User manuals· 2
Specifications
Technical specifications
| Model | CBES500 | CBES750 |
|---|---|---|
| Rated capacity | 500 kg | 750 kg |
| Load centre | 600 mm | 600 mm |
| Max. lift height | 1600–3500 mm | 1600–3500 mm |
| Fork length | 1070 mm | 1070 mm |
| Overall fork width | 160–650 mm | 160–650 mm |
| Overall length | 2340 mm | 2340 mm |
| Overall width | 786 mm | 786 mm |
| Turning radius | 1150 mm | 1150 mm |
| Travel speed (laden / unladen) | 4.5 / 4.7 km/h | 4.5 / 4.7 km/h |
| Lift speed (laden / unladen) | 100 / 145 mm/s | 100 / 145 mm/s |
| Drive motor | 0.75 kW | 0.75 kW |
| Lift motor | 2.2 kW | 2.2 kW |
| Battery | 24 V / 100 Ah (2 × 12 V; 120 Ah optional) | 24 V / 100 Ah (2 × 12 V; 120 Ah optional) |
| Machine weight | 800–1100 kg | 800–1100 kg |
Data from the official STAXX catalogue. Specifications may be changed by the manufacturer. Download the catalogue (PDF)
Video
Watch it in action
Video from the official STAXX YouTube channel.
Quote
Interested? Get a quick quote.
Fill in the form for the “Compact electric counterbalance pallet stacker” or call us on +30 210 800 1507 - 8.
