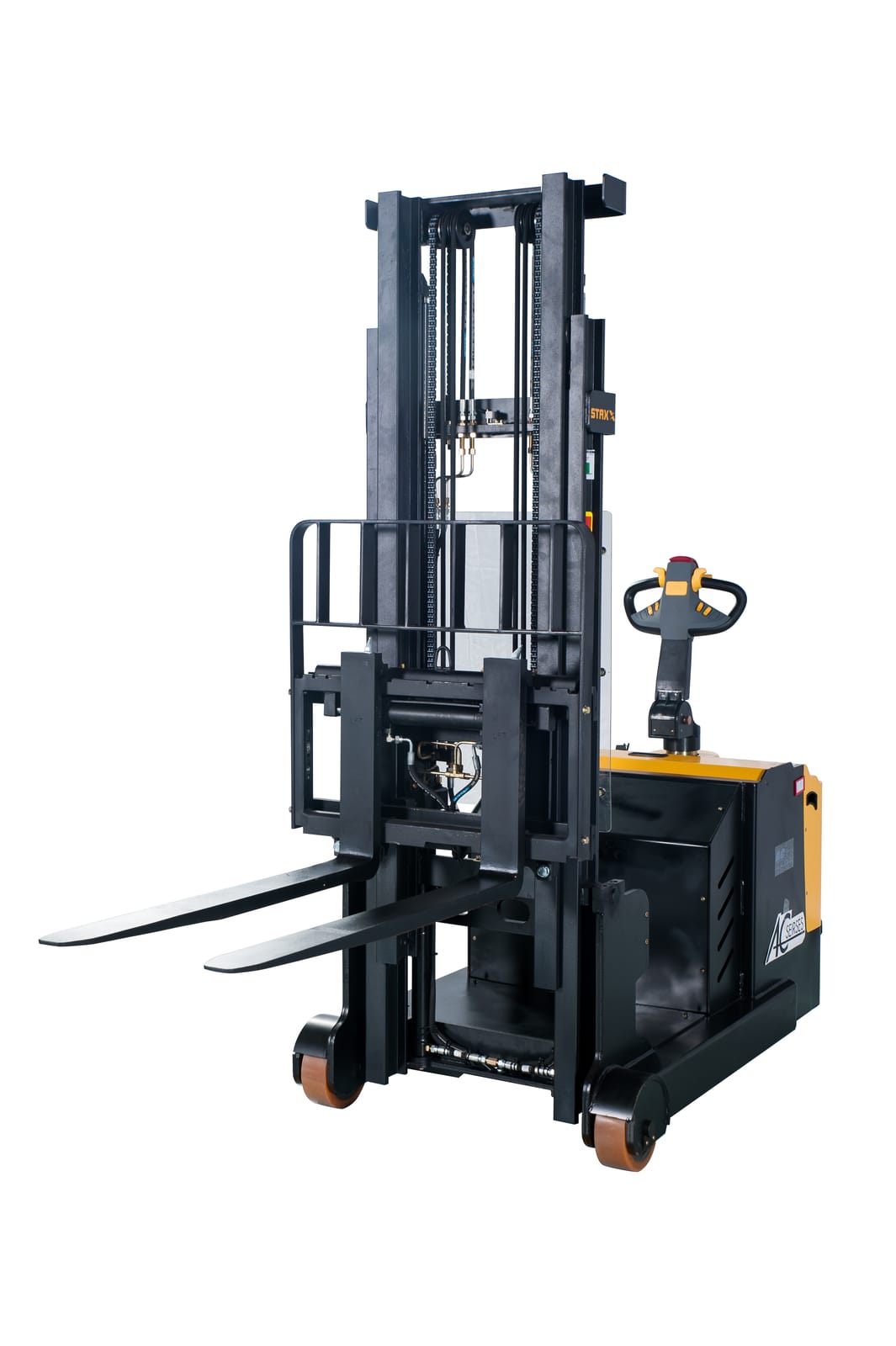

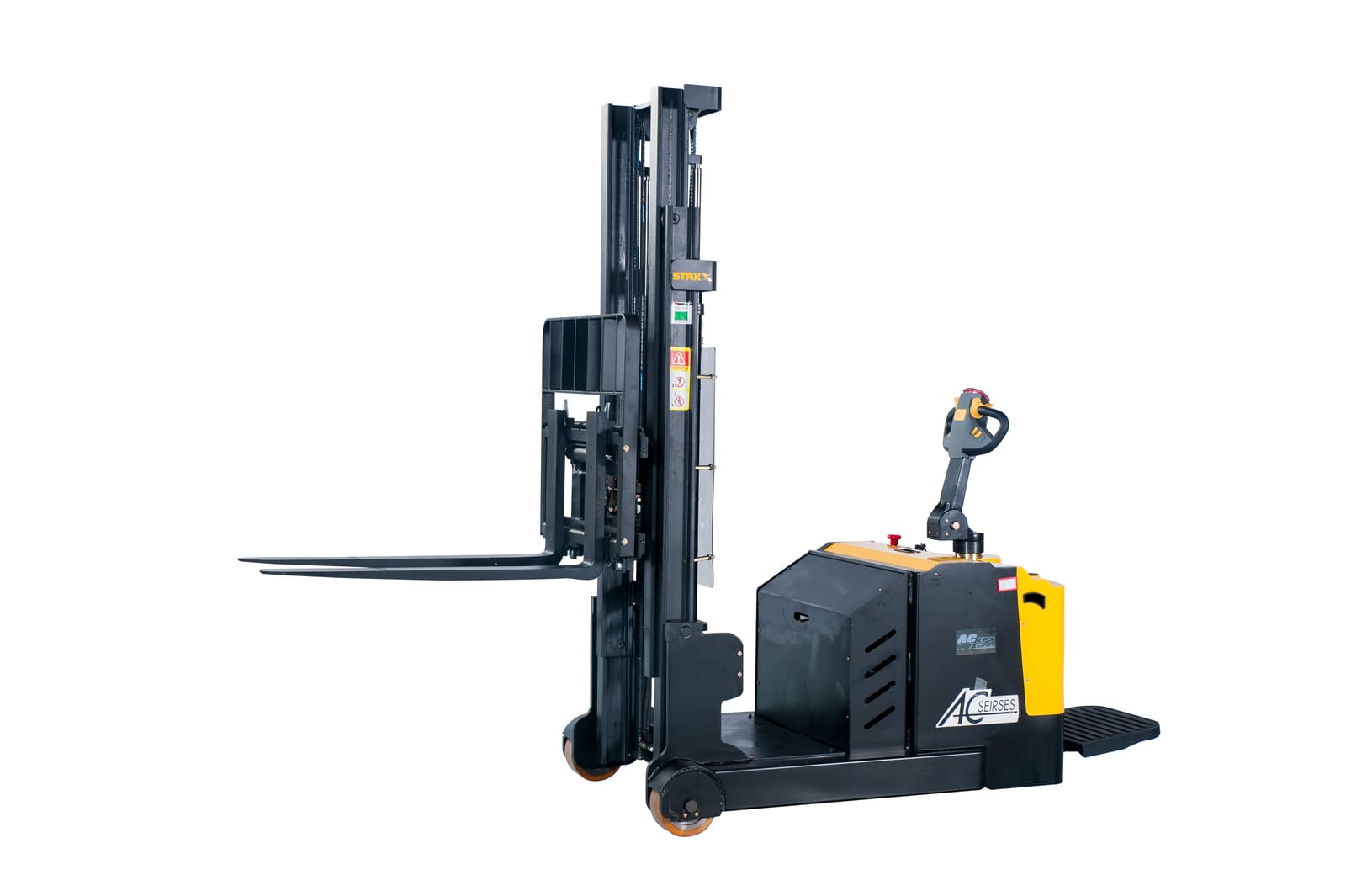

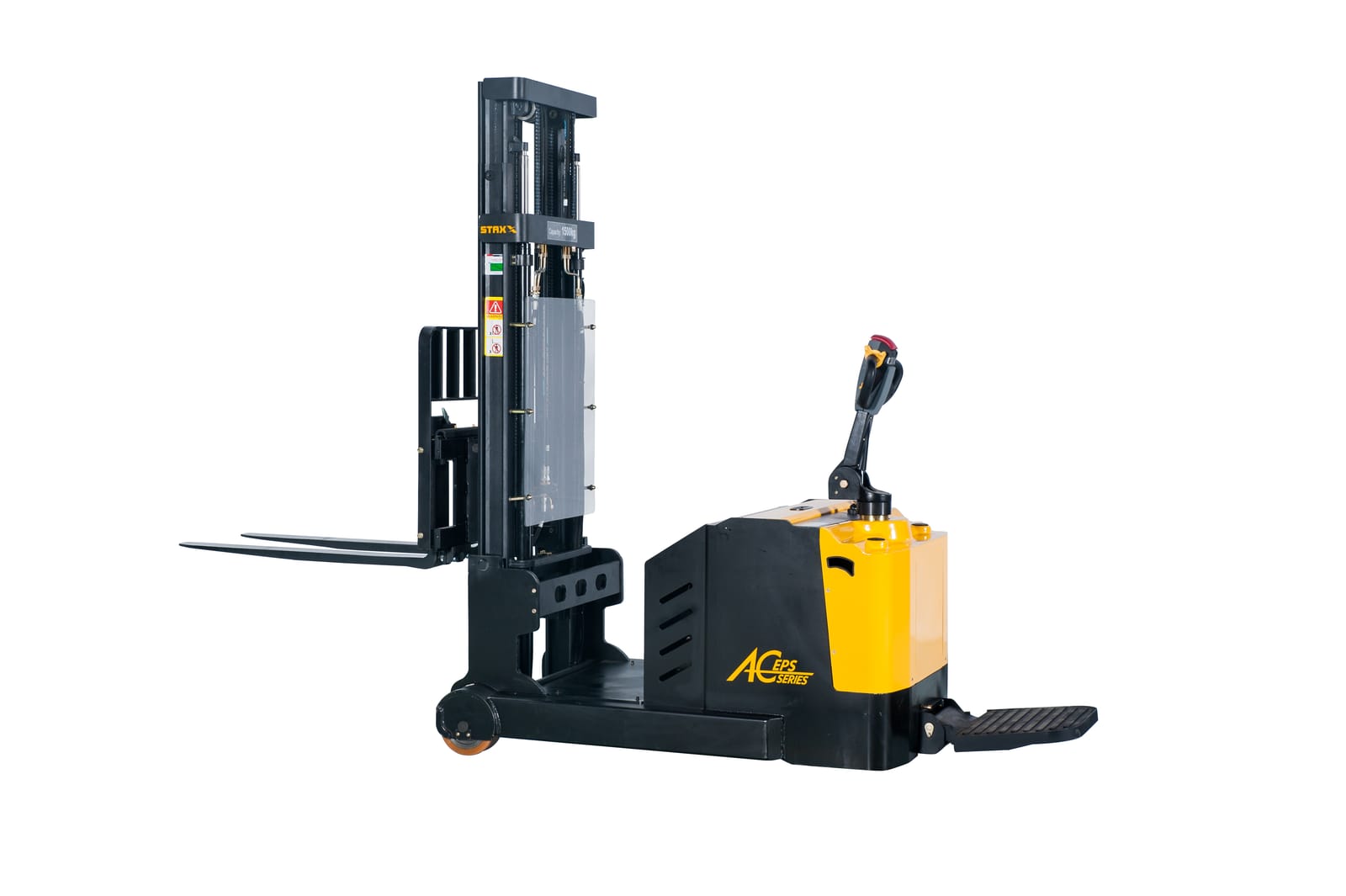

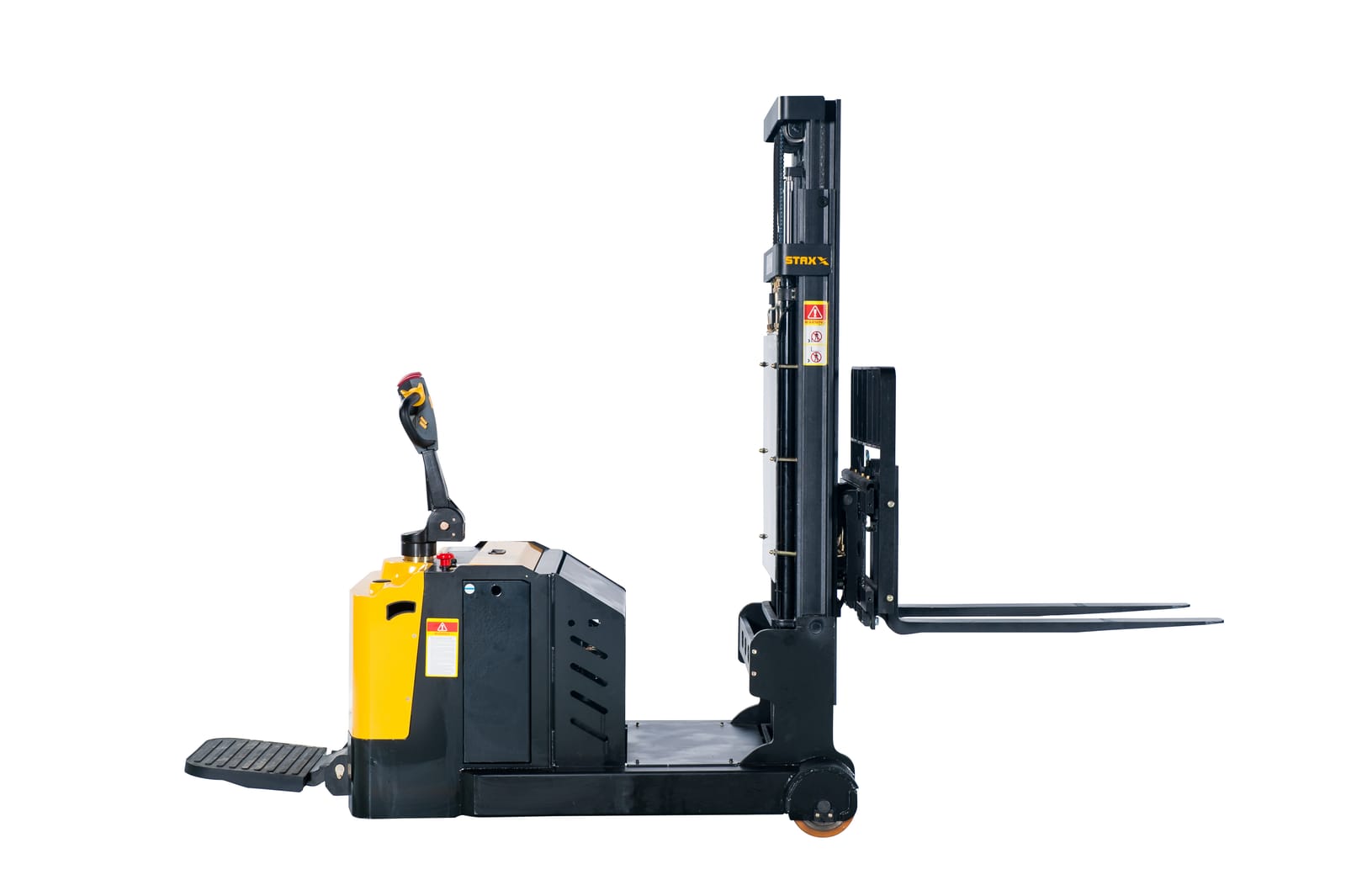

Electric counterbalance stacker (no front legs)
Models: CBES12 CBES15 CBES20
Electric counterbalance stackers, 1,200, 1,500 and 2,000 kg, with no front legs, for closed pallets.
- Counterbalance design with no base legs: access to the load from three sides, adjustable forged forks like a forklift
- Tilting fork carriage and reinforced H+H mast
- AC drive system with Curtis 1232E controller and electromagnetic brake

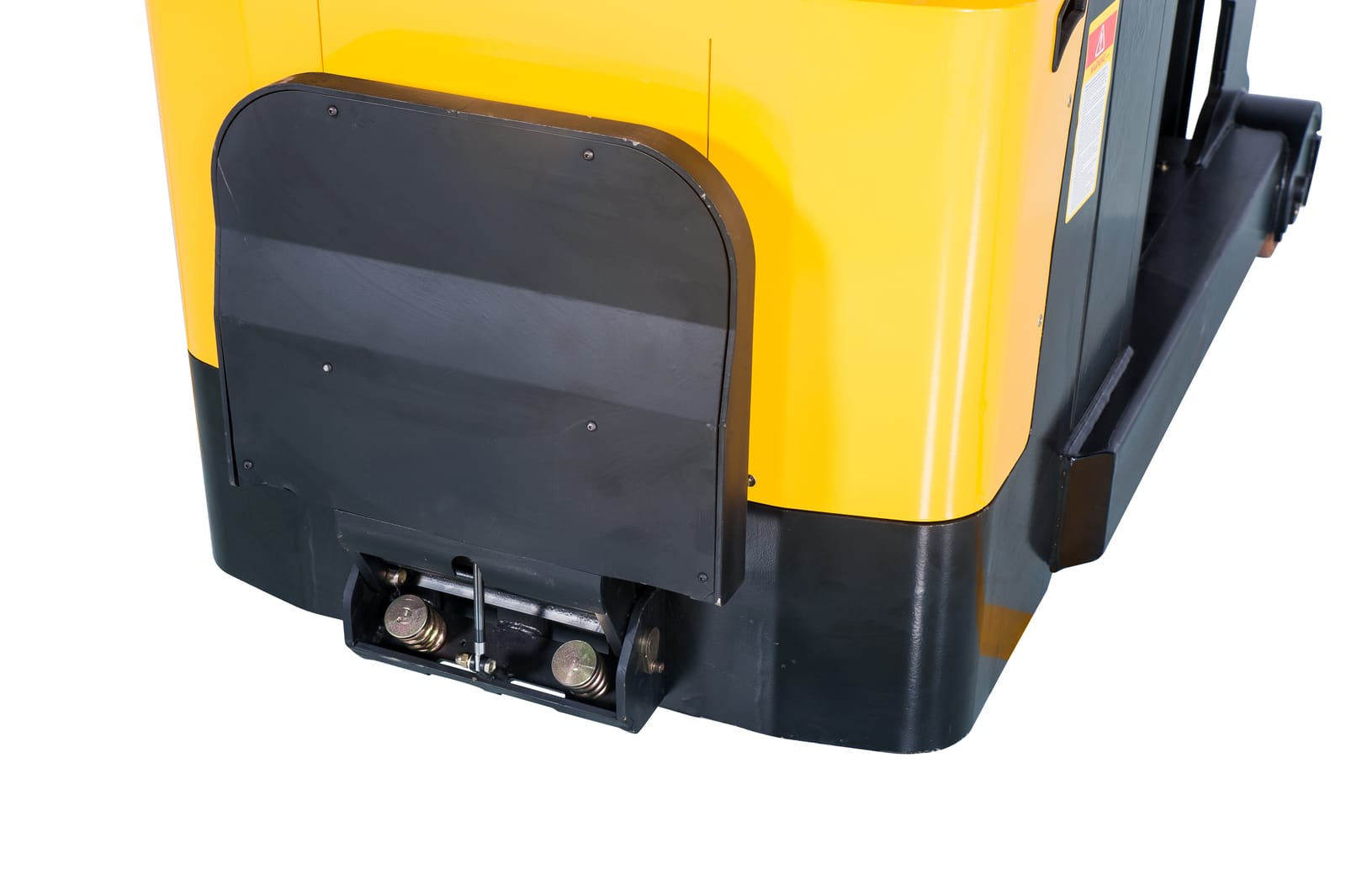

- Options: side shift, electric power steering, foldable platform with protective arms
Price on request
- Free quote, no obligation
- Service & spare parts in-house
- Shipping across Greece
Downloads
User manuals· 2
Specifications
Technical specifications
| Model | CBES12 | CBES15D | CBES20D | CBES15T |
|---|---|---|---|---|
| Rated capacity | 1200 kg | 1500 kg | 2000 kg | 1500 kg |
| Load centre | 600 mm | 600 mm | 600 mm | 600 mm |
| Max. lift height | 3000 mm | 3000 mm | 3000 mm | 4500 mm |
| Free lift | — | — | — | 1530 mm |
| Fork length | 1070 mm | 1070 mm | 1070 mm | 1070 mm |
| Overall length | 2710 mm | 2710 mm | 3000 mm | 2730 mm |
| Overall width | 990 mm | 990 mm | 1100 mm | 990 mm |
| Turning radius | 1463 mm | 1633 mm | 1840 mm | 1633 mm |
| Travel speed (laden / unladen) | 5 / 5.3 km/h | 5 / 5.3 km/h | 5 / 5.1 km/h | 5 / 5.3 km/h |
| Lift speed (laden / unladen) | 85 / 110 mm/s | 90 / 100 mm/s | 50 / 70 mm/s | 100 / 147 mm/s |
| Drive motor | 2.5 kW | 2.5 kW | 2.5 kW | 2.5 kW |
| Lift motor | 3 kW | 3 kW | 3 kW | 3 kW |
| Battery | 24 V / 210 Ah (270 / 340 Ah optional) | 24 V / 210 Ah (270 / 340 Ah optional) | 24 V / 210 Ah (270 / 340 Ah optional) | 24 V / 210 Ah (270 / 340 Ah optional) |
| Machine weight | 1730 kg | 1830 kg | 2250 kg | 2035 kg |
Data from the official STAXX catalogue. Specifications may be changed by the manufacturer. Download the catalogue (PDF)
